MSE PRO Large Flow Digital Distribution Peristaltic Pump, Max Speed 600rpm - MSE Supplies LLC

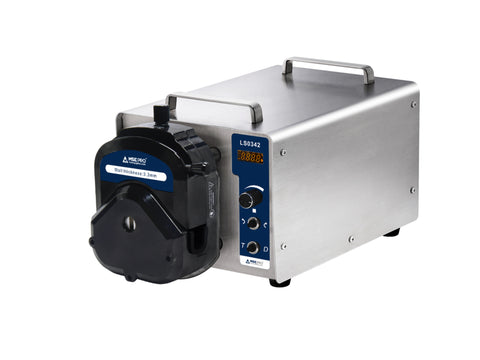

MSE PRO Large Flow Digital Distribution Peristaltic Pump, Max Speed 600rpm

SKU: LS0342

  • $ 1,75995
  • Save $ 19005

MSE PRO™ Large Flow Digital Distribution Peristaltic Pump, Max Speed 600rpm

MSE Supplies offers a Large Flow Digital Distribution Peristaltic Pump, the max speed of which can be up to 600rpm. It can switch between transmission mode and distribution mode to adapt to various working environments. Equipped with YZ35-13L, it allows for cascading multiple pump heads and adjusting them with digital knobs, offering large torque in both directions. The current flow rate or rotational speed is displayed on a 4-digit LED, and liquid volume calibration is possible. It supports the RS485/MODBUS communication protocol, with parameter adjustment via the knob for simple and convenient operation.

This Peristaltic Pump comes with YZ35-13 pump head and 2 meters of 82# silicon tube (ID: 13mm and WT: 3.3mm) as standard accessory. For additional tubes/pump heads beyond the standard configuration, please contact us for more detail.

Brand: MSE PRO™

Features:

  • Mode switching: Switchable between transmission or distribution modes.
  • Servo motor: Driven by a servo motor, providing powerful power and more accurate control.
  • Power-off save: Automatically saves control parameters during the last power-off event.
  • Flow calibration: Set the target flow, input the actual flow value, and the system will automatically perform flow calibration.
  • External control function: Supports the RS485MODBUS communication protocol; the protocol can also be customized according to customer needs.
  • Cascading capability: YZ35, YZ35-13L, and YZ35LS pump heads can be installed, allowing for cascading multiple pump heads.

Technical Data:

SKU# LS0342
Speed Range 0.1 ~ 600 rpm (reversible)
Speed Resolution 0.1 rpm
Flow Rate 1.2 ~ 12000 mL/min
Speed Mode Digital knob to adjust speed
Pump Head YZ35-13 as standard (For other types please contact us.)
Standard Tube Accessory

Length: 2 m

82# Tubing

Inner Diameter: 13 mm

Wall Thickness:  3.3 mm
Display Mode 4-digit LED displays current speed/flow
Power Supply AC110 V
Power Consumption ＜400 W
Timing Range 0.1 s ~ 9999 min
Quantitative Range 0.001 mL ~ 9999 L
External Control Method Start control/direction control/speed control (0 ~ 5 V, 0 ~ 10 V, 4 ~ 20 mA optional) RS485 serial communication.
Drive Size 372 x 232 x 225.5 mm
Drive Weight 19 kg


Flow Rates for Different Tubing Compatible with the YZ35-13 Pump Head

Applicable Tubing: 73#, 82#

Tubing size (ID x Wall thickness) Min. flow rate(0.1rpm) Max. flow rate (600 rpm)
9.6 mm x 3.3 mm (73#) 1.3 mL/min 7400 mL/min
13 mm x 3.3 mm (82#)  2 mL/min 12000 mL/min
