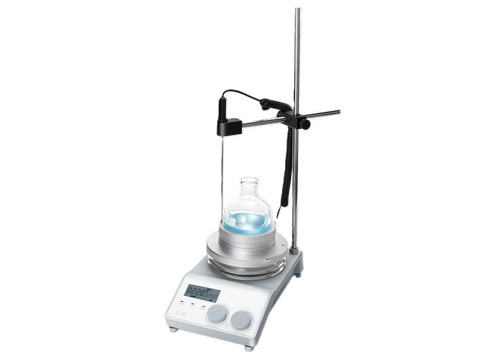

MSE PRO LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer
SKU: LS1510
MSE PRO™ LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer
- Enhanced magnets and powerful motors for outstanding performance in the stirring of viscous liquid.
- Smooth acceleration and deceleration for stable running without spillage
- Timer control from 1 minute to 99 hours and 59 minutes. When the time countdown completes, it will keep stirring but turn off heating to keep the sample safe from heat damage.
- Three heating modes for different demands: A) Fast heating; B) Standard heating; C) Steady heating.
- “HOT” warning flashes on the LCD display if the work plate temperature is above 50 °C after the user turn off the power switch.
- Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
-
Can be connected to PC for remote control.
Specifications:
SKU
|
LS1510
|
Work plate Dimension
|
Ø135mm(5 inch)
|
Work plate material
|
Aluminum cover with ceramic coating
|
Max. stirring quantity [H2O]
|
20L
|
Speed range
|
100-1500rpm
|
Speed display
|
LCD
|
Temperature display
|
LCD
|
Heating temperature range
|
Room Temp. to 340℃, increment 1℃
|
Temperature control accuracy
|
±1℃(<100℃), ±1%(>100℃)
|
Temperature display accuracy
|
±0.1℃
|
External temperature sensor (optional)
|
accuracy±0.2℃
|
"Hot" warning
|
50℃
|
Overheating temperature protection
|
420℃
|
Motor type
|
Brushless DC motor
|
Stirring positions
|
1
|
Max. magnetic bar length
|
80mm
|
Data connector
|
RS232
|
Timer function
|
1min to 99h59min
|
Protection class
|
IP21
|
Motor rating input
|
18W
|
Motor rating output
|
10W
|
Power
|
720W
|
Heating output
|
600W
|
Voltage Frequency
|
100-120V , 50/60Hz (Standard)
200-240V, 50/60Hz
|
Dimension [WxDxH]
|
160×280×100mm
|
Weight
|
2.8kg
|
Permissible ambient temperature
|
5-40℃
|
Permissible ambient humidity
|
80% RH
|
