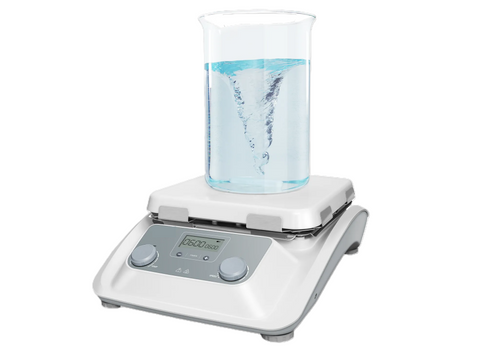

MSE PRO LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
SKU: LS1504
MSE PRO™ LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
- Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
- Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
- LCD display for precise monitoring of speed and temperature
- Digital speed control of 100 -1500rpm
- Max. heating plate temperature 500℃
- The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
- Data connector : The SD card also records the instrument's running data in real time.
- Timing function: the running time of the instrument can be set.
- Optional: External temperature control is possible by connecting the temperature sensor with an accuracy at ±0.2°C
Specifications:
|
SKU
|
LS1504
|
|
Work plate Dimension
|
254x254mm(10 inch)
|
|
Work plate material
|
Glass ceramic
|
|
Max. stirring quantity [H2O]
|
30L
|
|
Speed range
|
100-1500rpm，resolution±1rpm
|
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Heating temperature range
|
Room Temp.-550℃, increment 1℃
|
|
Temperature control accuracy
|
±1℃(<100℃), ±1%(>100℃)
|
|
Temperature display accuracy
|
±0.1℃
|
|
External temperature sensor (optional)
|
accuracy ±0.2℃
|
|
"Hot" warning
|
50℃
|
|
Overheating temperature protection
|
540℃
|
|
Motor type
|
Brushless DC motor
|
|
Stirring positions
|
1
|
|
Max. magnetic bar length
|
80mm
|
|
Data connector
|
SD Card
|
|
Timer function
|
1min-99h59min
|
|
Protection class
|
IP21
|
|
Motor rating input
|
18W
|
|
Motor rating output
|
10W
|
|
Power
|
1400W
|
|
Heating output
|
1350W
|
|
Voltage Frequency
|
100-120V (Standard)
200-240V，50/60Hz
|
|
Dimension [WxDxH]
|
328x424x138mm
|
|
Weight
|
7.2kg
|
|
Permissible ambient temperature
|
5-40℃
|
|
Permissible ambient humidity
|
80% RH
|
