MSE PRO LED Hotplate
SKU: LS1503

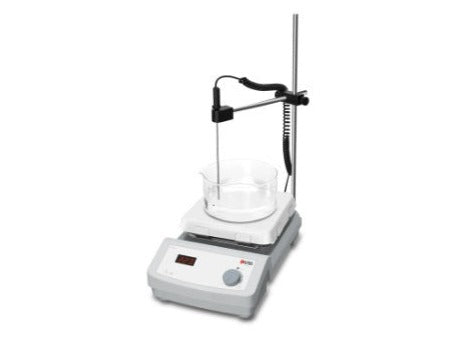

MSE PRO™ LED Hotplate
- LED screen display actual and accurate temperature
- Maximum temperature up to 550℃
- Separate safety circuits with safety temperature of 580℃
- Work plate provides excellent chemical- resistant performance and most efficient heat transfer
- “HOT" warning flashes when the work plate temperature is above 50℃
- Optional: External temperature control is possible by connecting temperature sensor with an accuracy of ±0.2℃
Specifications:
|
SKU
|
LS1503
|
|
Work plate Dimension
|
184x184mm (7 inch)
|
|
Work plate material
|
Glass ceramic
|
|
Speed range
|
100-1500rpm，resolution±1rpm
|
|
Temperature display
|
LED
|
|
Heating temperature range
|
Room Temp. to 550℃, increment 5℃
|
|
Time display
|
-
|
|
Temperature control accuracy
|
±10℃
|
|
Temperature display accuracy
|
±0.1℃
|
|
External temperature sensor (optional)
|
accuracy±0.2℃
|
|
"Hot" warning
|
50℃
|
|
Overheating temperature protection
|
580℃
|
|
Heating position
|
1
|
|
Timer function
|
-
|
|
Protection class
|
IP21
|
|
Power
|
1010W
|
|
Heating output
|
1000W
|
|
Voltage Frequency
|
100-120V (Standard)
200-240V，50/60Hz
|
|
Dimension [WxDxH]
|
215x360x112mm
|
|
Weight
|
4.5kg
|
|
Permissible ambient temperature
|
5-40℃
|
|
Permissible ambient humidity
|
80% RH
|
