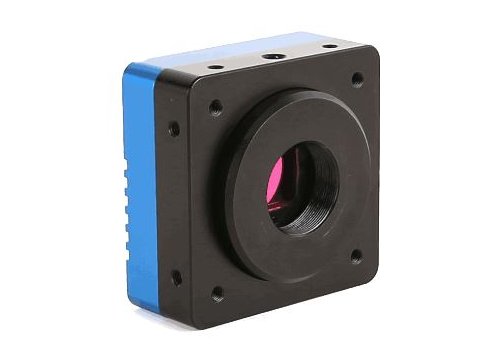

MSE Pro Life Sciences USB3.0 VIS CMOS Camera (45M/IMX492LLJ-C (M), 4/3")
SKU: TPIUA45000KMA
MSE PRO™ Life Sciences USB3.0 VIS CMOS Camera (45M/IMX492LLJ-C (M), 4/3")
MSE PRO™ provide Life Sciences USB3.0 VIS CMOS Camera (45M/IMX492LLJ-C (M), 4/3").
Key features
- Sony Exmor back-illuminated CMOS sensor;
- Two-step noise reduction technology;
- Ultra-high sensitivity and low noise;
- USB 3.0 data transmission interface compatible with USB2.0 protocol;
- Provides advanced video and image processing application software ToupView, compatible with Windows/Linux/OSX multi-platform SDK, support native C/C++, C#/VB.Net, DirectShow, Twain API;
- Supports external triggering, digital I/O and free-running modes;
- Supports ROI, flip, bit-depth switching and other features;
| SKU | TPIUA45000KMA |
| Image Sensor |
45M/IMX492LLJ-C (M) 4/3“ (19.11x13.00) |
| Pixel Size(μm) | 2.315x2.315 |
|
G Sensitivity/Dark Signal |
176mv with 1/30s 0.03mv with 1/30s |
| FPS/Resolution | 8.1@8176x5616 30.0@4080x2808 8.1@7408x5556 33.0@3696x2778 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1360x720 |
| Binning |
1x1 |
| Exposure Time |
100us~15s |
| General Parameters | |
|---|---|
|
Sensor model |
Sony IMX492LLJ-C |
|
Pixel size |
2.315 µm x 2.315µm |
|
Sensor size |
4/3” |
|
Frame rate |
8.1@8176x5616(3:2)，30.0@4080x2808(3:2) |
|
Conversion Gain |
3.59 (e-/ADU) |
|
Readout Noise |
2.70 (e-) |
|
Full Well |
14.7 (ke-) |
|
Dynamic range |
72dB |
|
Signal-to-Noise ratio |
41.7dB |
|
Sensitivity |
176mV |
|
Dark current |
0.03mV |
|
Gain range |
1x-50x |
|
Exposure time |
0.1ms-15sec |
|
Shutter |
Rolling shutter |
|
Binning |
Hardware 2x2, 3x3, 4x4; Software 2x2, 3x3, 4x4 |
|
Data interface |
USB3.0 (USB3.1 GEN1) |
|
Digital I/O |
One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output |
|
Data Format |
8bit / 12bit |
| General Specifications | |
|
Power supply |
Power with USB3.0/ DC12V |
|
Power consumption |
<2.1W |
|
Temperature |
Working temperature -10~50℃, storage temperature -30~70℃ |
|
Humidity |
20%-80%, no condensation |
|
Size |
68mmx68mmx28.1mm |
|
Weight |
214g |
|
Lens mount |
C-mount |
|
Software |
ToupView/ SDK |
|
Platform and architecture |
Win32/WinRT/Linux/macOS/Android；X86/X64/armhf/armel/arm64 |
|
Certification |
CE, FCC |
MSE Supplies offers a variety of Scientific-Grade Cameras. Please contact us for more information.
