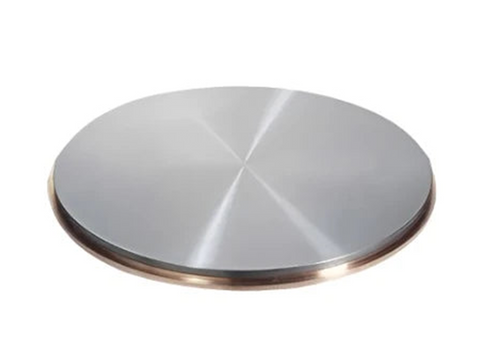

MSE PRO Nickel-Aluminum (NiAl) Single Crystal Substrates

MSE PRO Nickel-Aluminum (NiAl) Single Crystal Substrates

SKU: SU3449

  • $ 3,36995
  • Save $ 37500

MSE PRO™ Nickel-Aluminum (NiAl) Single Crystal Substrates

The MSE PRO™ Nickel-Aluminum (NiAl) Single Crystal is widely popular due to a promising combination of properties like high corrosion resistance, high melting temperature, low density, and good high-temperature strength. The properties of NiAl make it widely used as a high-temperature structural material.

    Both standard and custom made Nickel-Aluminum (NiAl) single crystal and substrates are available at MSE Supplies. Please contact us for more information.

    Specifications:

    Crystal Structure Cubic
    Crystal Orientation (100) +/- 0.5 degree
    Surface Normal Aligned Accuracy ~ 0.1°
    Surface Polishing Double Sides Polished (DSP)
    Surface Roughness Ra < 0.03 µm
    Size
    		 5 x 5 mm, other sizes are available upon request
    Thickness 0.4 mm

    Reference:

    [1] Portnoy, V. K., et al. "Formation of nickel aluminides by mechanical alloying and thermodynamics of interaction." Journal of alloys and Compounds 336.1-2 (2002): 196-201.

    [2] Noebe, Ronald D., Randy R. Bowman, and Michael V. Nathal. Physical and mechanical metallurgy of NiAl. No. E-7713. 1994.
