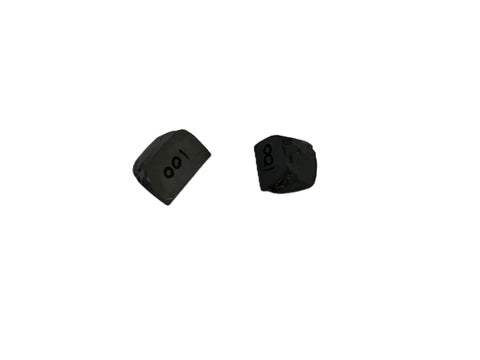

MSE PRO Nickel Oxide (NiO) Single Crystals and Substrates
SKU: WA1530
MSE PRO™ Nickel Oxide (NiO) Single Crystals and Substrates
Main Parameters of Nickel Oxide Single Crystal Substrates |
|
SKUs: |
WA1530, WA1531 |
Material |
NiO |
Color |
Green |
CAS# |
1313-99-1 |
Purity |
99.99% (4N) |
Crystal structure |
Cubic |
Unit cell constant |
a = 4.175 Å |
Melt point |
1,955 ºC |
Density |
6.67 g/cm3 |
Sizes |
10 mm x 10 mm x 0.5 mm, 5 mm x 5 mm x 0.5 mm |
Other sizes are available upon request |
|
Surface polishing |
Single side polished is standard, double side polished upon request |
Crystal orientations |
(100) |
Surface normal aligned accuracy |
~0.1° |
Surface roughness, Ra |
< 0.03um |
Package |
Sealed in class 100 clean bags packed in class 1000 clean room |
Images for reference only.
Please contact us for customization or bulk orders.
