MSE PRO Polycrystalline CVD Diamond Wafer (Thermal Conductivity: 1500W/m.K, Ra < 1nm)

MSE PRO Polycrystalline CVD Diamond Wafer (Thermal Conductivity: 1500W/m.K, Ra < 1nm)

SKU: WA1902

  • $ 79995
  • Save $ 9600



MSE PRO™ Polycrystalline CVD Diamond Wafer (Thermal Conductivity: 1500W/m.K, Ra < 1nm)

Polycrystalline diamond (PCD) belongs to wide band gap materials group. It has properties similar to single crystal diamonds (SCD), including exceptional thermal conductivity, high electron mobility, and high power capacity. These properties make it an excellent materials in improving the reliability and enhancing the power density while reducing the size of the power devices. The main differences between PCD and SCD are that PCD has slightly lower thermal conductivity compared with SCD; however, it is more commonly used in industry due to the lower cost and availability in large size. It is used in various applications, including heat spreader, cutting tool, epitaxy substrate, and power electronics. For example, researchers at University of Bath grow epitaxial GaN films on a polycrystalline diamond wafer for high power application resulting in a promising solution for heat dissipation problem.

Specification:

Size

WA1902: 10mm x 10mm

WA1903: 2 inch diameter

Thickness 0.3mm
Thickness Tolerance ± 5%
Bulk Resistivity 1012 ohm.cm
Surface Resistivity 1010 ohm.cm
Thermal Conductivity 1500W/m.K
Thermal Diffusivity at 300K > 8.3cm2S-1
Surface#1, Surface Roughness Ra < 1nm
Surface#2, Surface Roughness Ra < 50nm
TTV (2 inch wafer only) < 60μm
Bow  (2 inch wafer only) < 200μm
Quantity 1 piece

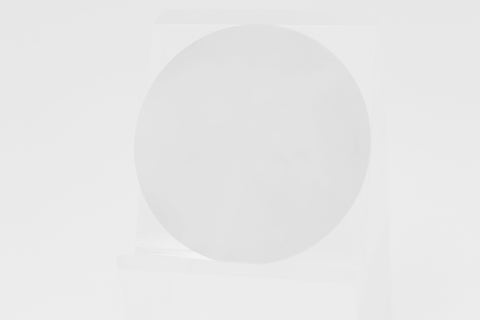

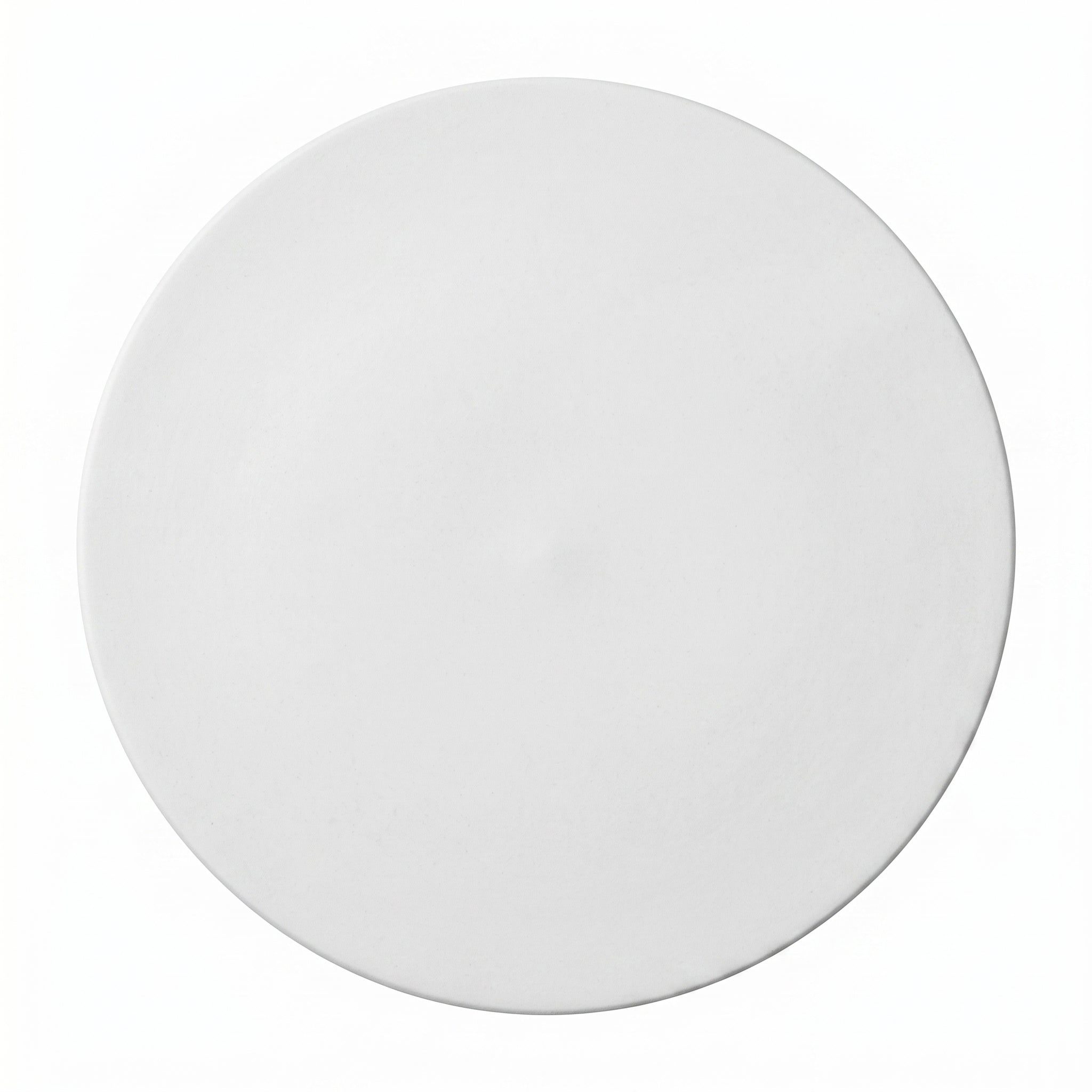

*The figure is for reference only. The actual product may look different due to configuration difference.

Please contact us for customization or bulk order.

References:

1. Wafer-sized polycrystalline diamond photodetector planar arrays for solar-blind imaging. Journal of Materials Chemistry C (2022).

2. Diamond FET using high-quality polycrystalline diamond with f T of 45 GHz and f max of 120 GHz. IEEE Electron Device Letters 27, no. 7 (2006): 570-572.

3. Diamond as the heat spreader for the thermal dissipation of GaN-based electronic devices. Functional Diamond 1, no. 1 (2022): 174-188.

4. Growth of GaN epitaxial films on polycrystalline diamond by metal-organic vapor phase epitaxy. Journal of Physics D: Applied Physics 50, no. 16 (2017): 165103.
