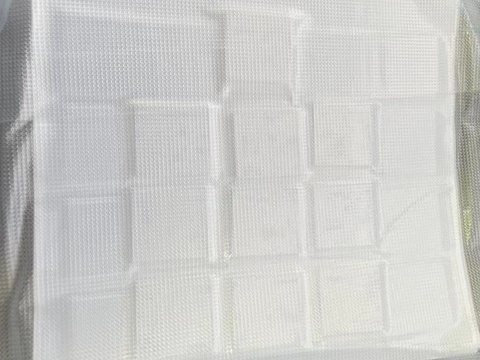

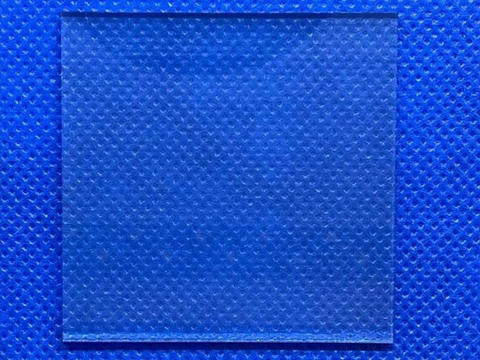

MSE PRO Prime Grade M-plane (10-10) Al<sub>2</sub>O<sub>3</sub> Sapphire Crystal Substrate, 10x10x0.5mm

MSE PRO Prime Grade M-plane (10-10) Al2O3 Sapphire Crystal Substrate, 10x10x0.5mm

SKU: WA0438

  • $ 2395
  • Save $ 300

MSE PRO™ Prime Grade M-plane (10-10) Al2O3 Sapphire Crystal Substrate, 10x10x0.5mm


SKU# WA0438 (SSP) or WA0439 (DSP)

Customized sapphire wafers and windows are available upon request

  • Material: High Purity >99.99%, single crystal Al2O3
  • Dimension: 10x10x0.5mm
  • Lattice Parameter: a=4.785 Å, c=12.991 Å
  • Density: 3.98 g/cm3
  • Orientation: M plane (10-10) 0.2+/-0.1 degree
  • Total Thickness Variation (TTV): <10 um
  • Bow: <10 um
  • Warp: <10 um
  • Thermal Expansion Coefficient: 6.66 x 10-6 / °C parallel to C axis, 5 x 10-6 /°C perpendicular to C axis
  • Dielectric Strength: 4.8 x 105 V/cm
  • Polishing: Single side polished (SSP) or Double side polished (DSP) Ra < 0.5 nm (by AFM).
