MSE PRO Rectangular Metallic Linearly Variable Neutral Density Filters, 3"x1"

MSE PRO Rectangular Metallic Linearly Variable Neutral Density Filters, 3"x1"

SKU: AB7MLVNDF-3x1-2

  • $ 27995
  • Save $ 4000

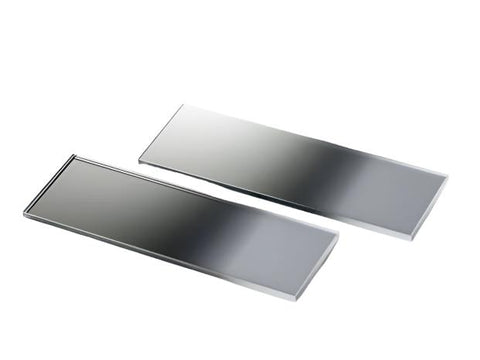

MSE PRO™ Rectangular Metallic Linearly Variable Neutral Density Filters, 3"x1"

MSE supplies offers 3"x1" Rectangular Metallic Linearly Variable Neutral Density Filters. This product is a reflective filter. One side of the filter is coated with Ni-Cr-Fe metal film, and the other side is coated with a broadband anti-reflection film in the visible light region. The transmitted light density is linearly attenuated by absorption and reflection in the visible light region to the near-infrared light region. The light density changes linearly in the direction of the extended edge. Neutral density filters block optical energy through optical density (OD). The higher the optical density (OD), the lower the transmittance. Conversely, the lower the optical density (OD), the higher the transmittance. Due to the absorption characteristics of the metal film, this filter is not suitable for high-intensity laser applications.

MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.

Technical Data:

Material BK7 fine annealed
Dimension Tolerance
+0.0/-0.2
Clear Aperture 90% of length and 80% of width
Optical Density(OD) 0.8-2.0±5%@632.8nm
Linearity of Optical Density ±5%
Coating

S1:Ni-Cr-Fe

S2:Broadband AR coated, Rave<0.5% for 420-675nm at 0-15º incidence.
Length 76.2
Width 25.4
Thickness 2.0
