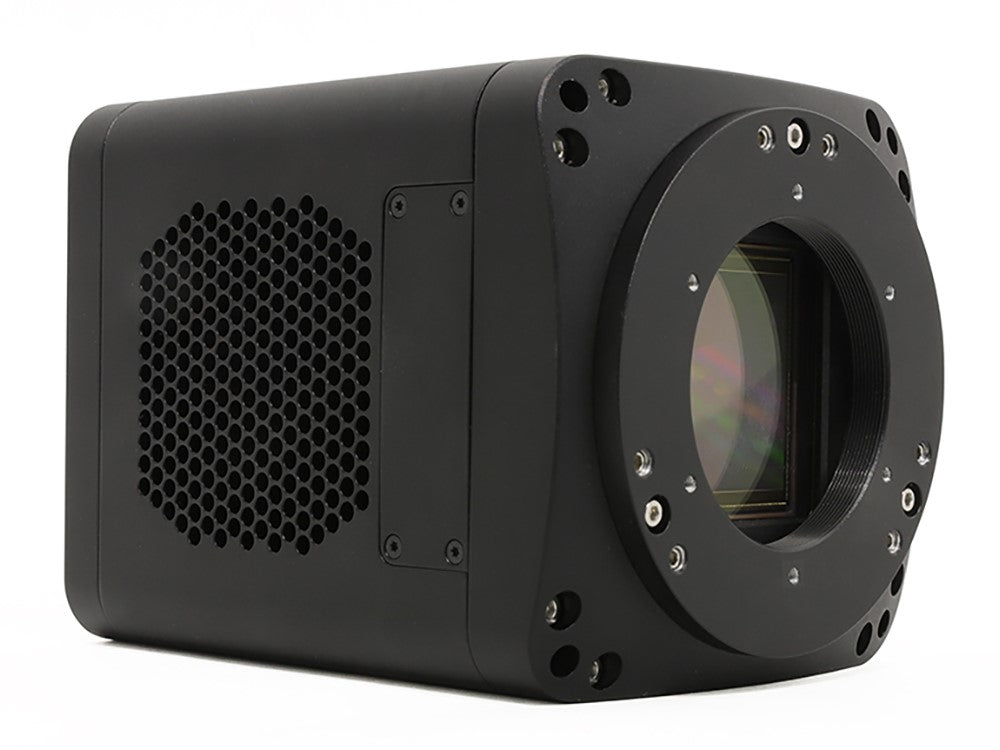

MSE Pro Scientific-Grade Dual-Stage Semiconductor Deep Cooling C-Port USB3.0 / Camera Link sCMOS Camera (16.8M 3.2",FPS 80@2048 90@2048)
SKU: TPSM16AM-U3-CL
MSE PRO™ Scientific-Grade Dual-Stage Semiconductor Deep Cooling C-Port USB3.0 / Camera Link sCMOS Camera (16.8M 3.2",FPS 80@2048 90@2048)
MSE PRO™ provide Scientific-Grade Dual-Stage Semiconductor Deep Cooling C-Port USB3.0 / Camera Link sCMOS Camera (16.8M 3.2",FPS 80@2048 90@2048).
This series sCMOS Camera adopts GSENSE with big pixel size or full-frame CMOS sensor as the image-picking device and USB3.0 /Camera Link is used as the transfer interface to increase the frame rate.
With the two-stage peltier cooling sensor chip to -40°C below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
This product comes with advanced video & image processing application. Providing Windows/Linux/ OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
This product can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
Key Features:
- Standard Camera with GSENSE CMOS sensors;
- Big pixels or full-frame sensor size;
- Two-stage TE-cooling with controllable electric fan;
- Sensor chip cooling up to 40°C below ambient temperature;
- Working temperature can be regulated to specified temperature in 5 minutes;
- Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
- IR-CUT/AR coated window (Optional);
- USB3.0 /GigE 5Gbit/s or 1000Mb/s interface ensuring high speed data transmission;
- Up to 1h long time exposure;
- Embedded up to 16bit hardware ISP module;
- Including 2-D denoising and sharpening;
- Ultra-Fine color engine with perfect color reproduction capability;
- Support the capture of video and image in software / hardware trigger mode;
- With advanced video & image processing application ToupView/ToupLite;
- Support both video and trigger modes;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain control API;
| SKU | TPSM16AM-U3-CL |
| Sensor & Size(mm) |
16.8M/GSENSE4040(M,UV,RS) 3.2”(36.9x36.9) |
| Pixel(μm) | 9 x 9 |
|
G Sensitivity Dark Signal |
23.82 V/(lux-s)@600nm Peak QE 74%@600nm 0.2 e-/s/pixel@0℃ 49.3dB(LCG 2.8x) 83.4dB(HDR 16bit) |
|
FPS/Resolution ADC |
20@4096 x 4096（U3） 80@2048 x 2048（U3） 23@4096 x 4096（CL） 90@2048 x 2048（CL） 8Bit / 12bit / 16Bit |
|
Binning |
1x1 2x2 1x1 2x2 |
|
Exposure |
12μs ~1h |
| Other Specification | |
|---|---|
|
Spectral Range |
200-1000nm(The spectral response range of each model is different. Please refer to the product manual of each model for detailed parameters) |
|
Protect Windows |
IR CUT (AR protection glass is optional) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-Fine Color Engine/NA for Monochromatic Sensor |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture and Movie (Free running mode or trigger mode) |
|
Cooling System* |
Two-stage TE-cooling System -40 °C below Camera Body Temperature |
|
IO Interface |
One optocoupler isolation input, one optocoupler isolation output, two direct connection GPIO |
| Operating Environment | |
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
External Power Adapter for Camera and Cooling System, DC19V, 4A |
| Software Environment | |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port: USB3.0 High-speed Port CL Port: PCIE Slot |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
MSE Supplies offers a variety of Scientific-Grade Cameras. Please contact us for more information.
