MSE PRO Short Pass Filters, Ø1"
SKU: ASPF-400-630-650 nm

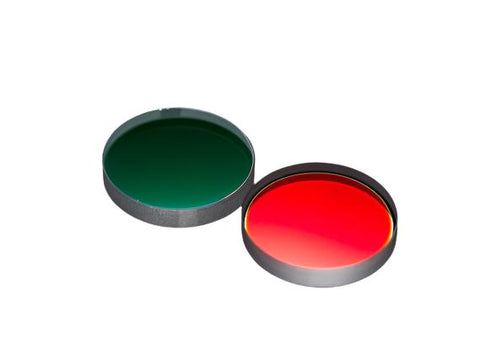

MSE PRO™ Short Pass Filters, Ø1"
MSE supplies offers Ø1" Short Pass Filters. They are coated on a substrate of fused silica, which allows the transmission of any wavelength shorter than the cut off wavelength and block any wavelength longer than the cut-off.
MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.
Technical Data:
| Substrate | Fused silica |
| Dimension Tolerance |
+0/-0.2
|
| Thickness | 4+/-0.2 |
| Parallelism | <3‘ |
| Flatness | λ/4 |
| Surface Quality | 40-20 scratch-dig |
| Clear Aperture | 90% Diameter |
| Transmission | T≥85% |
| Blocking |
T≤1%
|
| Diameter | ø25.4 |
