MSE PRO SMK-1011 Biological Microscope Machine

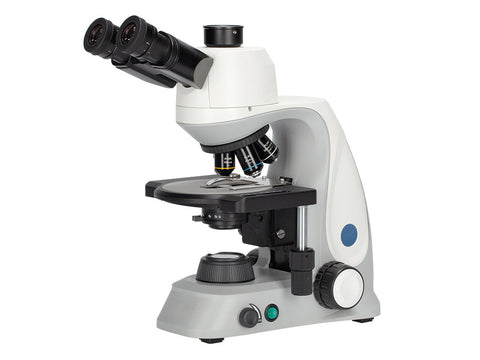

MSE PRO™ SMK-1011 Biological Microscope Machine

MSE PRO™ SMK-1011 microscope is high quality biological microscope, designed for universities or laboratories of biomedicine and other fields, can be used for teaching experiments and medical testing. Innovation design style, high quality and convenient, to bring you a simple and comfortable use experience. Excellent optical system and complete accessories, you can achieve a variety of observation such as bright field, dark field and phase contrast, to presenting you with wonderful images beyond your expectations. With ECO function, make your work easy and efficient.

1.Outstanding infinity color corrected optical system
Infinity color corrected system, professional plan achromatic objectives and cutting-edge microscopy technology, provide microscopic images with high resolution, high definition and high contrast.

2.22mm wide field
MSE PRO™ SMK-1011 biological microscope can achieve a wide field of view range of 22mm under 10X eyepiece, which is more efficient and perfect for observation. Professional high eye point and wide field plan eyepiece can effectively correct edge distortion and chromatic aberration.

3.Rotatable viewing tube
Viewing tube with gemel group 360°rotation function , adjustable pupil distance, eye point height, for different height of the operator to provide a more flexible and comfortable experience.

4.Super large ceramic rackless stage
Double-layer mechanical stage, large arc shape, no angular design. The stage surface adopts ceramic paint process, high hardness, corrosion resistance. Damping-type double clips can be placed two slices at the same time, for inspection and comparative analysis.

5.Super endurance function
The body is equipped with a Type-C interface, which allows the microscope to use a portable battery as a power source. The microscope thus frees itself from dependence on power outlets, enabling easy use outdoors or in power outages. The body comes with a standard USB port, that allows the microscope to charge a phone or tablet.

6.With ECO energy-saving working mode
Build-in ECO function, no operation for 30 minutes, the system will automatically turn off and into the standby mode. Users can automatically wake up the light source by touching the dimming knob.

7.User-friendly design increases comfort and safety
MSE PRO™ SMK-1011 microscope is equipped with a secure handle for moving. Fully concealed locking design eliminates all sharp edges. Low hand coarse and fine coaxial focus system is ergonomically designed to give the user maximum comfort. There is a storage device at the back of the body to ensure the cleanliness, saving storage space and improving portability.

8.Brightness memory function
MSE PRO™ SMK-1011 can be equipped with code nosepiece, able to remember the illumination brightness of each objective. Users can freely adjust the light source brightness of each objective and the system automatically remembers, not only to improve efficiency, but also to reduce visual fatigue.

9.Body power supply function
Built in 12V 1A transformer can directly charges the fluorescent illumination, easy to connect and safe to use.

Application

Various observations such as bright field, dark field and phase contrast can meet the needs of routine teaching and experimental observation.

Bright field observation
The professional plan achromatic objective, with the user of the Kohler illumination system, adjusts the image to the best condition by adjusting the aperture diaphragm and the field diaphragm. High-resolution, high-contrast microscopic images can be obtained whether at low or high magnification.

Phase contrast observation
It is suitable for observing samples with high transparency, such as cells, bacteria and other tiny, transparent objects in biological specimens.

Dark field observation
Insert the dark field kit into the socket of the condenser and push the dark field diaphragm into the optical path to achieve simple dark field observation. Without replacing the special dark field condenser, dark field observation can be performed on and magnification objective in the range of 4X-40X, which can be used to observe protozoa, bacterial flagella spirochetes and other substances.

* Infinite Color Corrected Optical System
* 30 degree gemel binocular tube, 360° rotatable, adjustable eye-point height from 375mm to 428.5mm, fixed eyepiece tube, interpupillary distance: 48-76mm
* PL10X/22mm
* Infinite Plan Achromatic Objectives 4X, 10X, 40X, 100X
* N.A. 1.25 Koehler illuminator condenser
* Quintuple Nosepiece with Brightness Memory

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
