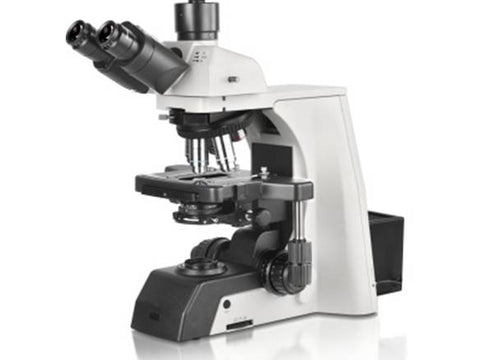

MSE PRO SMK-1026 Research Biological Microscope Machine

MSE PRO™ SMK-1026 Research Biological Microscope Machine

BestScope continues to explore the research needs of specialized fields such as pathology, cytology and virology, and continuously optimizes and upgrades the MSE PRO™ SMK-1026 of scientific grade upright microscopes to have near-perfect optical performance and mechanical structure design. NIS Infinity Optical System has precise imaging and chromatic aberration correction capabilities. The illumination system with high color reproduction, high-quality optics and full-featured accessories makes these microscopes ideal for cutting-edge life science research where darkfield of view, differential interference contrast or high-performance fluorescence are required. In addition, a wide range of motorized and intelligent components and powerful imaging software meet the needs of quick sample overview and detailed sample inspection, making repetitive tasks easy and greatly increasing ease and comfort for maximum productivity. No matter in a clinical laboratory or a research laboratory, the MSE PRO™ SMK-1026 microscopes provide the ideal microscopy imaging solution.

1. Sapphire Glass Stage is optional.
Mechanical stage with sapphire glass insert is optional, it is endurable, never could be scratched and allows users to clear the stage easily.

2. Put Slide by One Hand.
It is easy for users to put slides by one hand due to the special designed slide clip.

3. Tilting Trinocular Head is optional.
The eye tube can be adjusted from 0°-35°.

Digital cameras or DSLR cameras can be connected to the trinocular tube.
The beam splitter has 3-position (100:0, 20:80, 0:100).
The splitter bar can be assembled on the either side according to user’s requirements.

4. ECO Function.
The transmitted light would be off automatically after 30 minutes from operators leave. It can not only save energy, but also keep the lamp life longer.

5. Low Position X-Y Knobs.
The height of the stage control knobs can be adjusted up or down by 18mm to ensure a comfortable hand position, the tension of X-Y control knob also can be adjusted.

Application

MSE PRO™ SMK-1026 microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

* NIS60 Infinite Color Corrected Optical System                                                                    * Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100                                                                * Super wide field plan eyepiece SW10X/25mm, diopter adjustable                                    * N-PLN Plan Objective 4X, 10X, 20X, 40X, 100X                                                                    * Swing-out type condenser N.A.0.9/0.25                                                                              * Sapphire Glass Stage is optional.                                                                                        * Tilting Trinocular Head is optional.                                                                                      * ECO Function.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
