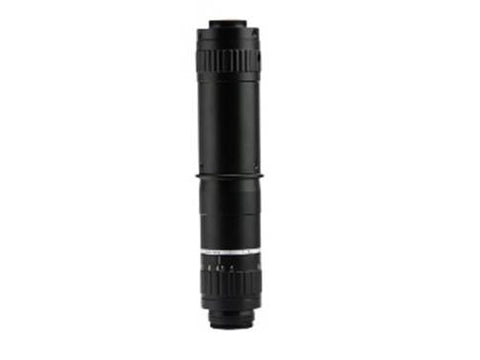

MSE PRO SMK-1037 Zoom Microscope

MSE PRO™ SMK-1037 Zoom Microscope

MSE PRO™ SMK-1037 Monocular Zoom Microscope adopts an apochromatic parallel optical imaging system and provides high-resolution, sharp stereoscopic images. This microscope is designed for applications in machine vision, industrial inspection, and scientific research. Its modular product portfolio and excellent optical performance make it a superior choice in these fields.

1.Apochromatic parallel optical system
Adopt apochromatic parallel optical imaging system, use advanced multi-layer coating technology, excellently correct the imaging on the edge of field of view. Get high-resolution and high contrast images, naturally restore the true colors of observed objects. High repeat positioning accuracy.

2.Compact design
Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in modern equipment. High hardness wear-resistant aluminum alloy materials, anode oxidation surface treatment, and long service life.

3.Zoom ratio
Zoom ratio 1:8.3, zoom range 0.6×-5×, standard working distance 88mm, can meet the requirement of machine vision conventional imaging.

4.Diverse accessories
There are a variety of auxiliary lens and C-mount eyepiece adapter for option, make the system’s optical magnification range 0.054×-1500×, working distance 2mm-270mm, object field of view 0.004mm-20mm. Adopt modular design, various additional accessories are optional to make the microscope a powerful device for your jobs.

5.Illumination
LED Ring light, polarizing illumination, coaxial illumination system are optional. Coaxial illumination adopts single high brightness 3W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection and limited exterior lighting occasions. Available to observe different objects by using LED illumination or fiber optic illumination to meet different required.

Application

MSE PRO™ SMK-1037 Monocular Zoom Microscope are widely used in educational demonstration, agriculture research, industrial material, semi-conductor, integrated circuit board inspection area and so on. Widely used in electric equipment, semi-conductor, LCD and LED, for digital image observation, inspection and measurement.

* Infinite apochromatic parallel optical system
* Optical zoom magnification: 0.6×-5.0×, zoom ratio 1:8.3.
* Various optional eyepieces, objectives and other accessories can meet different requirements.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
