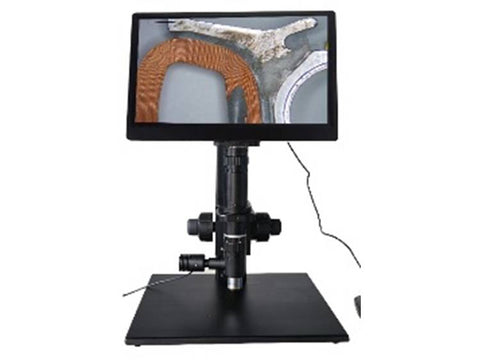

MSE PRO SMK-1039 Digital Monocular Zoom Microscope

MSE PRO™ SMK-1039 Digital Monocular Zoom Microscope

MSE PRO™ SMK-1039 LCD Digital Monocular Zoom microscopes adopt apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images. The camera system comes with a HDMI, WIFI camera and 11.6” retina LCD screen. The camera can be controlled with mouse to take pictures, take videos and make measurement, it can work without PC. This series microscopes are designed for the applications in the fields of machine vision, industrial inspection and scientific research. Modularization product portfolio and excellent performance make them a better choice in these areas.

• Adopt apochromatic parallel optical imaging system, use advanced multi-layer coating technology. Get high-resolution and high contrast images, naturally restore the true colors of observed objects.
• Compact design, it is very suitable for the small installation space.
• Zoom ratio 1:8.3, zoom range 0.6×-5×, standard working distance 88mm, can meet the requirement of circuit board, electronics, semi-conductor and other industrial inspections.
• There are a variety of auxiliary lens and C-mount eyepiece adapter for option, make the system’s total magnification range 1.65×-1050×, working distance 0.4mm-270mm, object field of view 0.12mm-72mm.
• BAL-48A LED Ring light is standard, Polarizing illumination, Coaxial illumination system are optional, Coaxial illumination adopts single high brightness 3W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection and limited exterior lighting occasions.
• Adopt modular design, various additional accessories are optional to make the microscope a powerful devoice for your jobs.
• The camera system comes with a HDMI, WIFI camera and 11.6” retina LCD screen, controlled by mouse.

Application

MSE PRO™ SMK-1039 LCD Digital Monocular Zoom Microscope are widely used in educational demonstration, agriculture research, industrial material, semi-conductor, integrated circuit board inspection area and so on.

* Infinite apochromatic parallel optical system
* Optical zoom magnification: 0.6×-5.0×, zoom ratio 1:8.3.
* Digital camera with HDMI and WIFI output, can capture 2.0MP pictures
* 11.6 inch LCD screen
* LED Ring light, brightness adjustable
* Pillar type column plain stand with coarse focus arm, base size 330×300×10mm

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
