MSE PRO SMK-1073 Laboratory Metallurgical Microscope

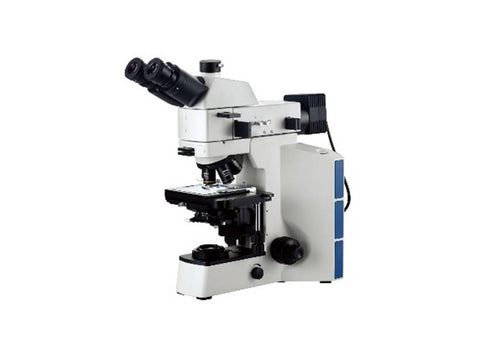

MSE PRO™ SMK-1073 Laboratory Metallurgical Microscope

MSE PRO™ SMK-1073 metallurgical microscopes are high level professional microscopes which are specially designed for metallurgical analysis and industrial inspections. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.

1. With the most suitable viewing degree, 30 °inclined head holds everyone in the best working state, less tension and fatigue. You can adjust the interpupillary distance to optimum according to the scale on viewing head.

2. Reflected illuminator with field/aperture diaphragm and oblique light device, as well as slots for polarizing kit and filters, adopts Koehler illumination system.

• 2.1 Comparing with other LED, single 5W LED with warm white light(3000-3300K) greatly reduces the fatigue on observer’s vision.
• 2.2 With pull-rod devices for adjusting the centers of field and aperture diaphragm, stray light can be eliminated by expanding or shrinking the illumination zone.
• 2.3 Simple polarizing observation is available with insert polarizer kit. More ideal images are here with different filters.

3. The highest sample can be tested is 28mm with transmitted & reflected frame while 78mm high sample is available with reflected frame, as the stage can be dropped 50mm by loosening the screw in the stage holder.

4. M4 wrench for socket head screws places in the frame, making the best of the available space and improving your working efficiency.

5. Up-limit device is helpful to avoid the damage caused by impact between sample and objective lens.

6. Using the outstanding swing-out condenser system, much more transmitted light can be through with bigger numerical.

Application

MSE PRO™ SMK-1073 are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings and other non-metallic materials and so on.

* Infinite optical system
* Siedentopf trinocular viewing head, inclined at 30°, interpupillary distance 54mm-75mm, left diopter ±5 adjustable, splitting ratio R:T=100:0 or 50:50, eyepiece tube Φ30mm
* High eye-point wide field plan eyepiece PL10×/22mm
* Infinite LWD Plan Achromatic Metallurgical Objective 5x, 10x, 20x, 50x
* Backward quintuple nosepiece
* Reflected & transmitted lamp-house with single 5W LED

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

MSE Supplies offers a variety of Lab Microscope Machines. Please contact us for more information.
