MSE PRO Split Type 200-Ton Electric Hydraulic Pellet Press with Safety Shield
SKU: PR0398

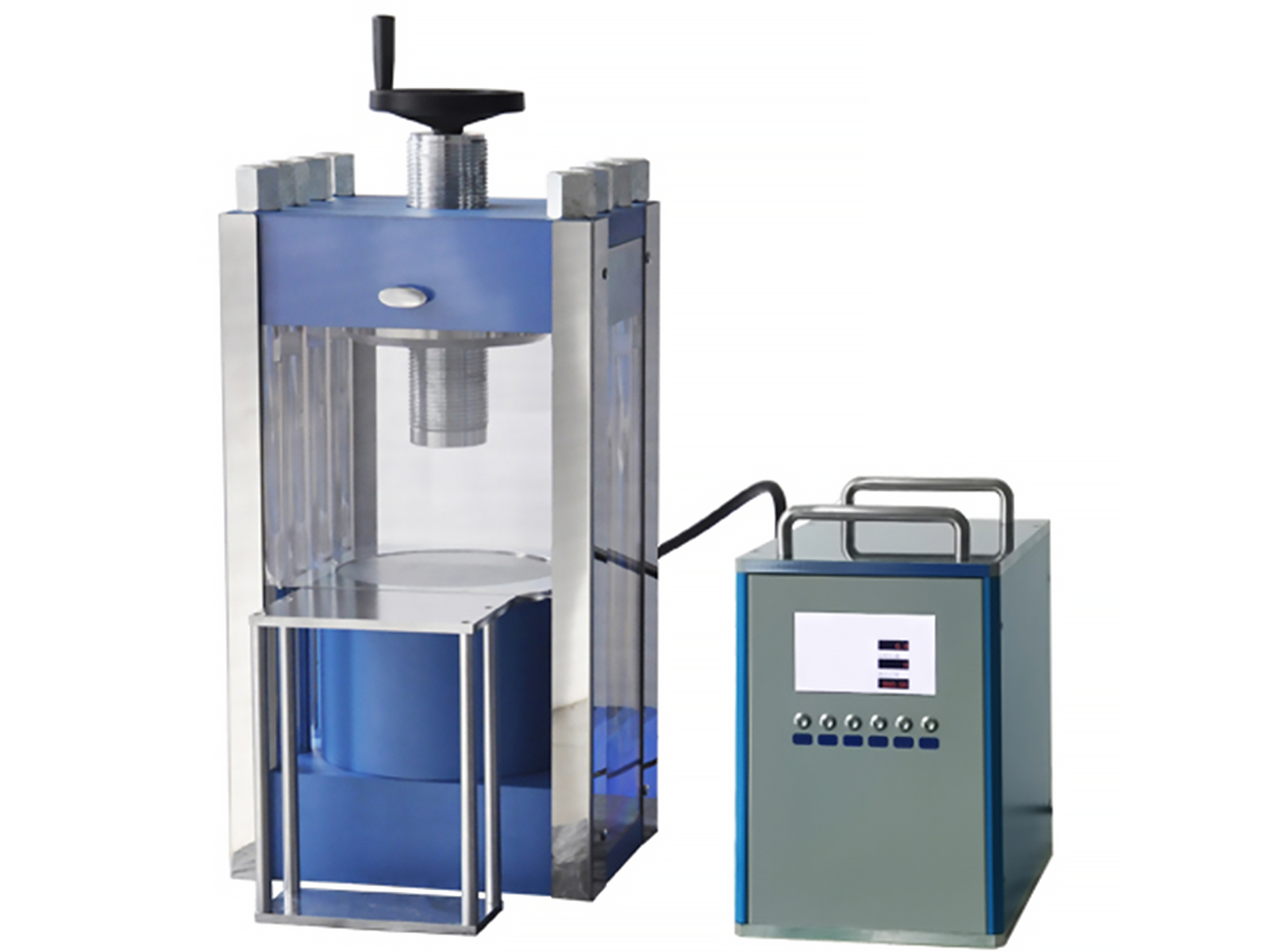

MSE PRO™ Split Type 200-Ton Electric Hydraulic Pellet Press with Safety Shield
Our lab scale 200-Ton electric hydraulic pellet press has unique features such as compact structure, small volume, fast compression, easy cleaning and low maintenance. It is widely used to press powders for FTIR/XRF analysis, battery electrode material, metallurgy, ceramic and catalysis applications.
Compared with manual pressing, the electric pellet press is easier to operate, and the split design makes it have larger working space.
At MSE Supplies, we are experts at powder processing materials, ball milling equipment and accessories. We offer a variety of ball mill and jars to break down the particle size before the pressing. We also supply pellet pressing dies which are compatible with this press for pellet pressing.
If you need other maximum pressure requirements or customized designs, please contact us.
Specifications
| Product SKU # | PR0398 |
| Pressure range | 1-200 Metric Tons |
| Diameter of piston | 290mm (d) |
| Maximum travel distance of the piston | 50mm (T) |
| Pressure holding time | ≥1s (no time limited) |
| Display | 7” LCD display. |
| Equipment protection | Steel plate protection with organic glass door |
| Working space | 290mm x 300mm (MxN) |
| Dimensions |
1000mm x 650mm x 1050mm (WxLxH)
|
| Net weight | 850kg |
| Power supply |
110V 60Hz |
| Power | 1500w |
| Warranty | Limited one year warranty, not responsible for the damage caused by improper use. |
| Note | Please clean the press after each use to ensure the best performance and longer lifetime. |
