MSE PRO Temperature and Humidity Test Chamber for Battery and Electronic Research, 80L
SKU: MA2201

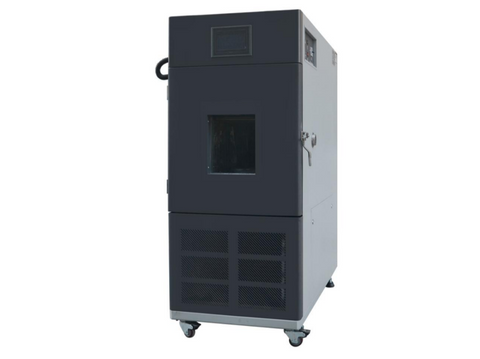

MSE PRO™ Temperature and Humidity Test Chamber for Battery and Electronic Research, 80L
MSE Supplies offers a temperature and humidity test chamber. The chamber is primarily utilized for testing the reliability of battery and electronic products, components, and other materials through a range of conditions, including high and low temperatures, damp heat, and humidity. It is designed to simulate various environmental conditions to ensure product performance.
Technical Specifications:
| Product SKU# | MA2201 |
| Temperature Range | 0 ℃ ~ +120 ℃, can be customized |
| Temperature Variation | ± 0.5 ℃ |
| Temperature Accuracy | ≤ ± 2.0 ℃ |
| Temperature Uniformity | ≤ ± 2.0 ℃ |
| Temperature Heating Speed | 1~3 ℃/min average |
| Temperature Cooling Speed | 1 ℃/min average |
| Humidity Range | 20 %~98 %RH |
| Humidity Variation | ± 2 %RH |
| Humidity Accuracy |
≤ ±5 %RH (<75 %RH) ≤ +2 %/-3 %RH (>75 %RH) |
| Humidity Uniformity | +2%/-3%RH |
| Noise | 70 dB (AA) |
| Sample Shelf Number | 2 pcs |
| Sample Shelf Capacity | 30 kg/layer |
| Testing Hole Diameter | 100 mm |
| Testing Hole Number | 2 pcs |
| Capacity | 80 L |
| Chamber Dimensions (WxHxD) | 400 x 500 x 400 mm |
| Outside Dimensions (WxHxD) | 650 x 1650 x 1270 mm |
| Power Supply | three phase 208 V 60 Hz, can be customized |
| Weight | 500 kg |
MSE Supplies offers different types and capacities of the test chambers, please contact us to discuss your needs.
