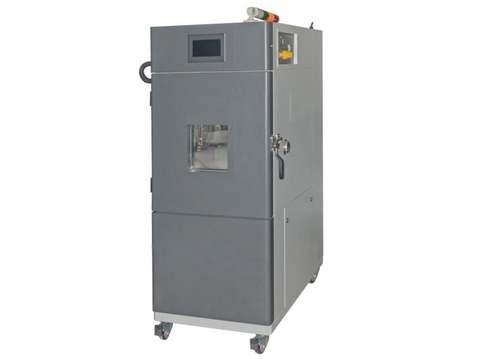

MSE PRO Temperature Cycling Test Chamber for Battery and Electronic Research, 150L
SKU: MA2202
MSE PRO™ Temperature Cycling Test Chamber for Battery and Electronic Research, 150L
MSE Supplies offers a temperature cycling test chamber. The chamber is primarily utilized for testing the reliability of battery and electronic products, components, and other materials through a range of conditions, including high and low temperatures, damp heat, and humidity. It is designed to simulate various environmental conditions to ensure product performance.
Technical Specifications:
| Product SKU# | MA2202 |
| Temperature Range | -70 ℃ ~ +150 ℃, can be customized |
| Temperature Variation | ± 0.5 ℃ |
| Temperature Accuracy | ≤ ± 2.0 ℃ |
| Temperature Uniformity | ≤ ± 2.0 ℃ |
| Temperature Heating Speed | 1~3 ℃/min average |
| Temperature Cooling Speed | 1 ℃/min average |
| Noise | 70 dB (AA) |
| Sample Shelf Number | 2 pcs |
| Sample Shelf Capacity | 50 kg/layer |
| Testing Hole Diameter | 100 mm |
| Testing Hole Number | 2 pcs |
| Volume | 150 L |
| Chamber Dimensions (WxHxD) | 500 x 500 x 600 mm |
| Outside Dimensions (WxHxD) | 700 x 1370 x 1780 mm |
| Power Supply | 208V Three Phase, can be customized |
| Weight | 500 kg |
MSE Supplies offers different types and capacities of the test chambers, please contact us to discuss your needs.
