MSE PRO Three Target lon Sputtering Coater - MSE Supplies LLC

MSE PRO Three Target lon Sputtering Coater

SKU: MA0604

  • $ 9,69595
  • Save $ 1,30000

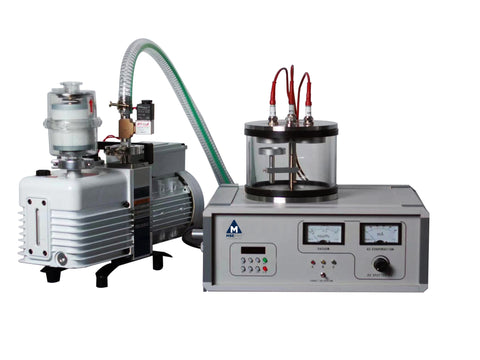

MSE PRO™ Three Target lon Sputtering Coater

MSE Supplies offers a Three Target lon Sputtering Coater, which is specifically designed for the preparation of samples for coating, minimizing damage to substrate samples. It is widely used for coating non-conductive samples with materials like gold, silver, and platinum to enhance imaging quality.

Operable under low vacuum conditions, it can achieve rapid setup within 5 minutes with the use of an appropriate vacuum pump. The instrument generates minimal heat, avoiding damage to substrate samples from plasma. It provides a user-friendly experience and is easy to operate.

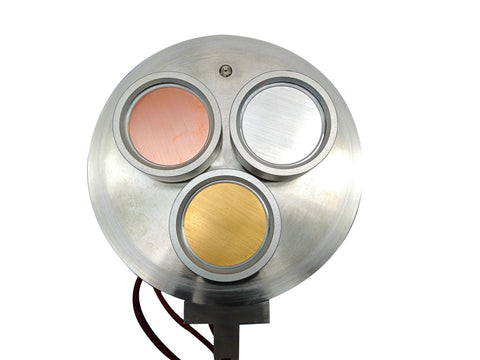

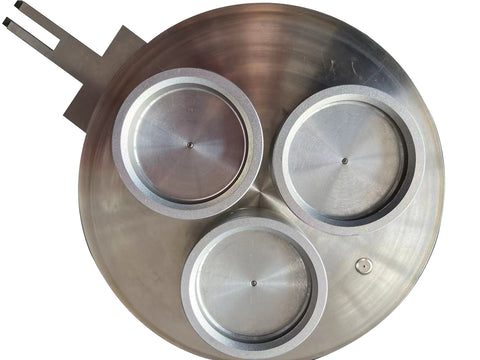

Three sputtering targets make it a highly versatile system capable of depositing thin films of various materials continuously.

Vacuum pump as standard accessory is included.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Technical Specifications

SKU# MA0604
Vacuum Pump Set (Oil required) Rotary Vacuum Pump
Rotary Pumping Speed 60 Hz: 9.6 m3/h (2.6 L/s)
Max Sputtering Current 30 mA
Vacuum Limit  2 Pa
Working Pressure 20-8 Pa
Vacuuming Time < 5 Min (to 2 Pa)
Vacuum Measure Measuring range from atmosphere to 2X10-2 mbar.
Gas Control Gas Flow Controller
Chamber φ165*120mm, Scratch resistant quartz glass.
Target Source (Not included)

Can only sputter noble metals: Au, Ag, Pt

Target size φ50 mm*(Au: 0.1 mm/Ag: 0.5 mm/Pt: 0.1 mm)
Operation Method Instruction Manual
Weight  52 Kg
Size, L*W*H 390*340*370 mm
Power Supply AC 110V 60Hz
Power Consumption < 1500 W
Warranty One-year limited warranty with lifetime product support
