MSE PRO Two-zone Thermal Shock Test Chamber for Battery and Electronic Research, 80L
SKU: MA2208

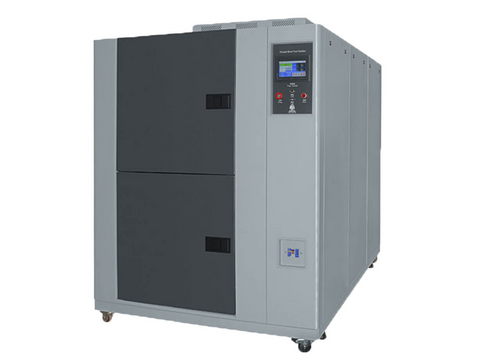

MSE PRO™ Two-zone Thermal Shock Test Chamber for Battery and Electronic Research, 80L
MSE Supplies offers a thermal shock test chamber. This chamber is designed for conducting highly accelerated stress tests (HAST) on electrical and electronic components. It allows for quick temperature changes through direct specimen transfer between the hot and cold zones, making it ideal for thermal shock testing, also known as the Environment Stress Screen test. It is frequently utilized in laboratory and product manufacturing settings to verify product qualification and reliability.
Technical Specifications:
| Product SKU# | MA2208 |
| Temperature Range | -40 ℃ ~ +150 ℃, can be customized |
| Pre-cooling Zone Temperature | -40 ℃ ~ -10 ℃ |
| Pre-heating Zone Temperature | +50 ℃ ~ +150 ℃ |
| Temperature Cooling Rate | -40 ℃ ~ -10 ℃ < 30 min |
| Temperature Heating Rate | +50 ℃ ~ +150 ℃ < 30 min |
| Temperature Variation | ≤ ± 0.5 ℃ |
| Temperature Accuracy | ≤ ± 2 ℃ |
| Temperature Uniformity | ≤ ± 2 ℃ |
| Temperature Recovery Time | ≤ 5 min |
| Cooling Method | Air cooling |
| Control Mode | Touch screen programmable control PLC |
| Test Chamber Material | SUS304 polished stainless steel, 1mm thickness |
| External Material | Flame retardant high strength PU polyurethane foam insulation material |
| Volume | 80 L |
| Chamber Dimensions (WxHxD) | 400 x 500 x 400 mm |
| Outside Dimensions (WxHxD) | 1320 x 2000 x 1520 mm |
| Power Supply | 208V Three Phase, can be customized |
| Weight | 750 kg |
MSE Supplies offers different types and capacities of the test chambers, please contact us to discuss your needs.
