MSE PRO Uncoated H-K9L Plano Convex Lenses
SKU: UPCXK9-50-32.5

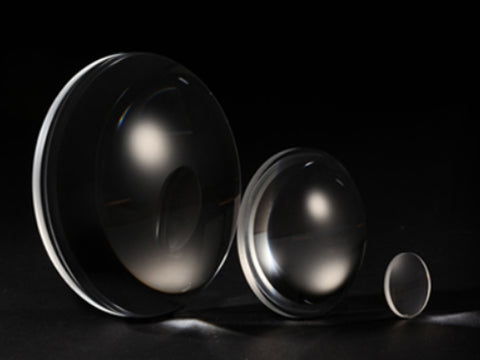

MSE PRO™ Uncoated H-K9L Plano Convex Lenses
MSE supplies offers standard and customized Plano Convex Lenses with different materials, dimension, surface qualify, etc.
Plano Convex Lenses, as indicated by the name, is a special lens with one flat surface and one convex surface. Lenses have a positive focal length and can be used either focusing or collimating. These lenses could be available uncoated or with a variety of antireflection coatings optimized in the VIS (400-700nm); NIR (650-1050nm) and SWIR (1000-1650nm).
Coating treatments can also be applied to enhance its transparency and anti-reflective properties. Please contact us for customized coating services.
Technical Data:
| Parameters | Value |
| Material | H-K9L |
| Size Tolerance (mm) | ±0.0/-0.1 |
| Central Thickness Tolerance (mm) | ±0.2 |
| Effective Focal Length Tolerance | ±2% |
| Design Wavelength (nm) | 587.6 |
| Centration | 3' |
| Surface Quality | 60/40 |
| Irregularity | λ/4 @632.8nm |
| Bevel |
0.2mmX45° |
| Coating | Uncoated |

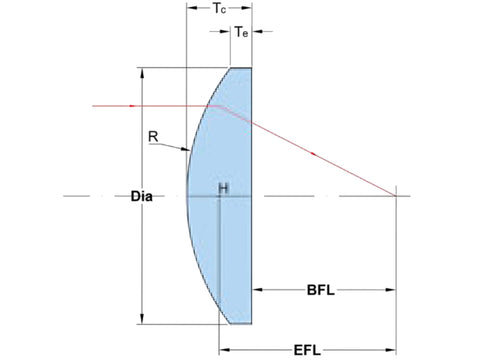

Specification:
| SKU | Diameter (mm) |
Effective Focal Length (mm) |
Back Focal Length (mm) |
R1 (mm) |
Central Thickness (mm) |
Edge Thickness (mm) |
| UPCXK9-50-32.5 | 50 | 63 | 53.22 | 32.5 | 14.73 | 3 |
| UPCXK9-50-41.3 | 50 | 80 | 72.45 | 41.3 | 11.43 | 3 |
| UPCXK9-50-51.64 | 50 | 100 | 93.77 | 51.64 | 9.45 | 3 |
| UPCXK9-50-82.62 | 50 | 160 | 155.47 | 82.62 | 6.87 | 3 |
| UPCXK9-50-129.24 | 50 | 250 | 246.7 | 129.24 | 5.44 | 3 |
| UPCXK9-50-258.18 | 50 | 500 | 497.21 | 258.18 | 4.21 | 3 |
| UPCXK9-100-82.62 | 100 | 160 | 146.25 | 82.62 | 20.85 | 4 |
| UPCXK9-100-129.24 | 100 | 250 | 241.37 | 129.24 | 14.05 | 4 |
| UPCXK9-100-258.18 | 100 | 500 | 494.13 | 258.18 | 8.89 | 4 |
MSE Supplies can offer a variant of optical elements, with different material, size, surface quality and coating. Please contact us for customization or bulk orders.
