Nabertherm 1280°C High Performance Chamber Furnace N 7/H for Annealing, Hardening and Brazing
SKU: N01H1NKNA-208

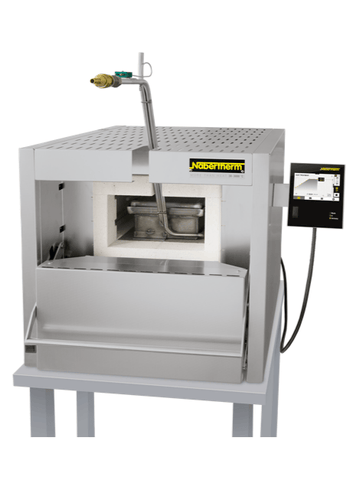

Nabertherm 1280°C High Performance Chamber Furnace N 7/H for Annealing, Hardening and Brazing
MSE supplies offers a High Performance Chamber Furnace N 7/H. The chamber furnaces N ../H are built to withstand harsh use in the laboratory, when robust insulation with light refractory bricks is necessary, e.g. heat-treating metals. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium in medical applications can be implemented without the use of expensive and complicated annealing systems.
Buy Nabertherm laboratory furnaces from MSE Supplies with the best price. Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Germany. Nabertherm offers a wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces.
Country of Origin: Made in Germany
Manufacturer: Nabertherm GmbH
Main Features:
· Tmax 1280°C
· Deep furnace chamber with three-sides heating: from both side walls and bottom
· Heating elements on support tubes ensure free heat radiation and a long service
life
· Bottom heating protected by heat-resistant SiC plate
· Temperature uniformity up to +/− 10°C
· Low energy consumption due to multi-layer insulation
· Base frame included in the delivery
· Parallel guided downward swinging door (user protected from heat radiation)
· Door movement cushioned with gas dampers/struts
· Designed as table-top model
· Controller B500 (5 programs with each 4 segments)/C540 (20 programs with each 10 segments), you can control multiple furnaces remotely with app on your smartphone!
Technical Data
| SKU# |
MA0444 with B500 controller MA0445 with C540 controller |
| Model | N 7/H |
| Tmax (°C) | 1280°C |
| Inner Dimensions (mm) | 250x250x140 |
| Outer Dimensions (mm) | 800x650x600 (may vary with different accessories) |
| Volume (L) | 9 |
| Power Supply (kW) | 3.0 |
| Electrical Connection |
Single phase 208V as default Single phase 240V as option |
| Weight (kg) | 60 |
| Heating time to reach Tmax (min) | 320 (with empty and closed furnace) |
| Warranty | One year after delivery (not including thermocouple and heating wire) |
| Compliance | The furnace is ready to pass UL (USA) or CSA (Canada) certification at extra cost |
We offer High Performance Chamber Furnaces with different sizes and Tmax . For more information, please contact us.
About Nabertherm: Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Lilienthal near Bremen. It offers wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces. With more than 70 years of experience and one of the largest engineering departments in the furnace industry, the name Nabertherm stands for high quality "Made in Germany", future-oriented innovations, worldwide service and reliability. More than 100,000 customers in over 100 countries underline this.
MSE Supplies is an authorized distributor for Nabertherm GmbH in North America.
