Total Price: $29899.95
Contact Information
Neware CE-6032n-60V20A Battery Module Testing System
SKU: BR0564

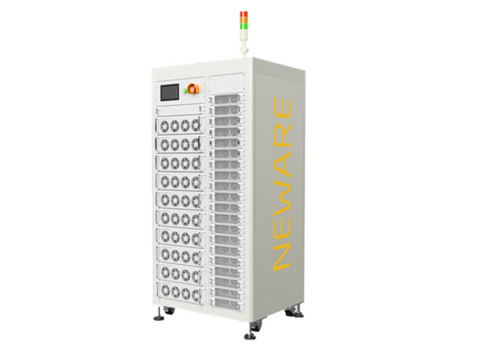

Neware CE-6032n-60V20A Battery Module Testing System
Product Details:
Neware CE-6000 test system is a high-precision charge-discharge machine developed for high-power battery module & pack testing. It has the characteristics of high dynamic response speed, high stability accuracy, flexible configuration of multiple channels, and it supports pulse test, cycle life test, and driving simulation tests, etc. The Neware CE-6000 system is regenerative, which means the discharged energy can be used by other charging channels or can be returned back to the power grid if there’s still extra discharged energy.
About Neware
Since 1998, Neware has been committed to providing world-class testing solutions for the batteries and capacitors. Neware has provided flexible, high accuracy battery testing equipment to more than 32,000 customers worldwide ranging from battery manufacturers to R&D institutes, such as Argonne National Lab, LG Chem, Johnson Matthey, 3M, MIT, Stanford University and Princeton University. Customers are satisficed with stable, cost-effective battery testing equipment, along with the great service of Neware. ISO9001:2015 certified,
MSE Supplies is an authorized distributor of Neware in the USA. The product figure is for reference only. The actual product may look different based on the product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Product Specifications:
| SKU | BR0564 |
| Neware Model | CE-6032n-60V20A |
| Channel | 32 |
| Power Supply | 3PH-AC380V±15% 50/60±5Hz |
| Channel parallel connection |
Support max 4 channels parallel mode |
| Input Power | 45.2kW |
| Input Current | 68.6A/single |
| Noise | ≤65dB |
| Voltage Range |
Charge: 0V-60V Discharge: 3V-60V |
| Voltage Accuracy | ± 0.05% of FS |
| Output Range | 20A |
| Current Accuracy | ± 0.1 of % FS |
| CV Cut-off Current | 0.05% of FS（Each independent range） |
| Single Channel Output Power | 1.2kW |
| Whole Machine Output Power | 38.4kW |
| Dimensions W*D*H | 950*800*1950(mm) |
| Weight | About423KG |
| Warranty | Limited 1 year warranty. Lifetime technical support |
| Additional Information | CE-6032n-60V20A |
Middle machine is included.
FAQ
1. What is middle machine?
A: Middle machine is used to communicate between PC and cyclers. You will need at least one middle machine to run the testers.
2. How many cyclers can a middle machine connect?
A: One middle machine can connect up to 10 cyclers.
3. Is middle machine the same for all types of cyclers? or do I need to buy different type of middle machine to run different cyclers.
A: There is only one type of middle machine.
