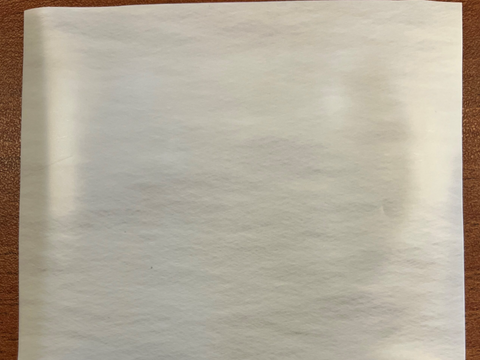

PNB™-R85 Reinforced Anion Conductive Membranes
SKU: ME0453
PNB™-R85 Reinforced Anion Conductive Membranes
PNB™-R85 Membranes are mechanically reinforced anion exchange membranes (AEMs) made from PFAS-free polynorbornene ion-conductive polymer. Built on high glass transition temperature poly(norbornene) copolymers, they offer exceptional thermal and chemical stability.
With a hydroxide conductivity over 200 mS/cm at 80°C, they retain 99% conductivity in KOH at 80°C for 1,200+ hours, ensuring high durability in alkaline environments. Their reinforced structure enhances toughness, making them easy to handle and ideal for pressurized systems. Featuring functionalized norbornene chemistry, PNB™-R85 delivers high anion conductivity, stability, and optimized ion exchange capacity for demanding applications.
Technical Specification
| Property | Value | Test Method |
| Thickness | Dry: 85±3 µm; Hydrated: 106±3 µm |
Micrometer |
| Reinforcement | Olefin | |
| Ion Exchange Capacity | 3.5 meq/g | Ion Chromatography, titration, NMR |
| Conductivity | 70±5 mS/cm (OH- form at 25°C) |
In-plane |
| Tensile Strength | > 30 MPa | Instron |
| Young's Modulus | > 1.0 GPa | Instron |
| Elongation at Break | > 35% | Instron |
| Dimensional Swelling | 3% to 6% (at RT in H2O) | |
| Water Uptake | 40% to 45% (at RT in H2O) | |
| Quaternary Amine Type | Trimethylammonium | |
| Polymer Glass Transition Temperature (Tg) |
170°C to 190°C | DMA |
| Counter-ion as-received | Carbonate |
