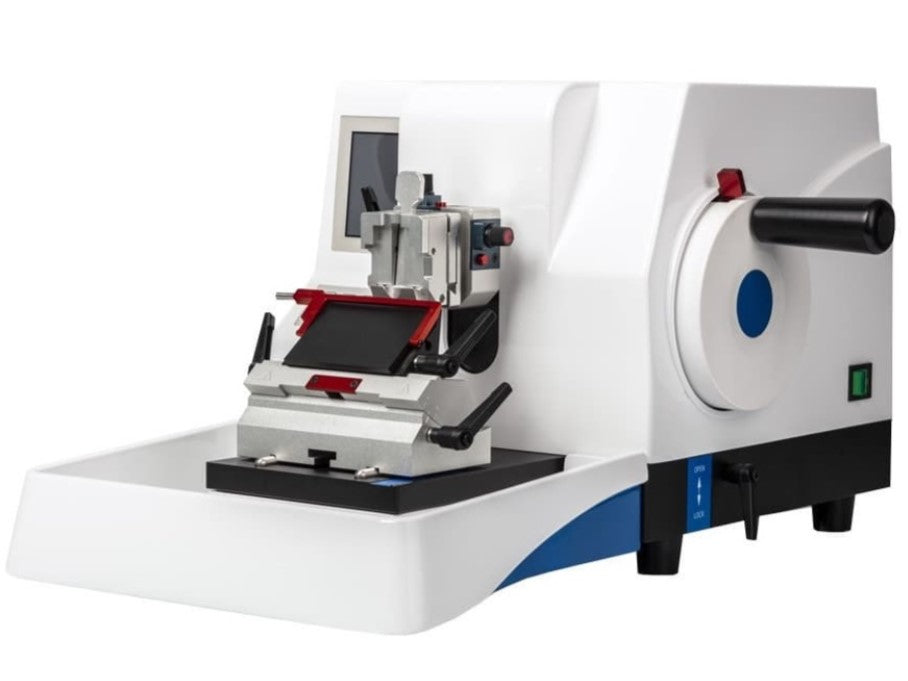

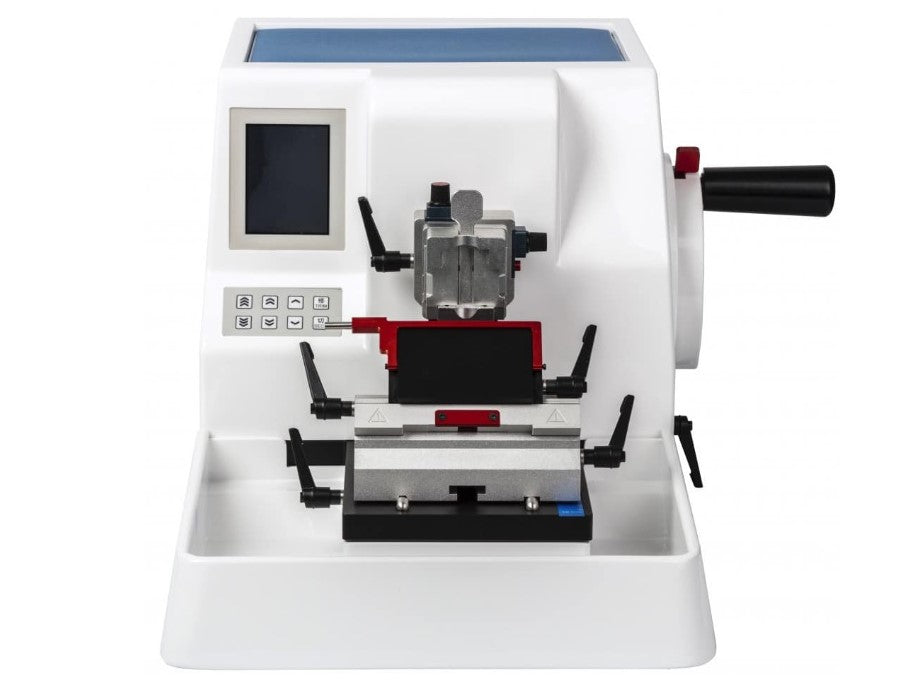

Precisionary Semi-Automated Rotary Microtome RF-800
SKU: RF-800
Precisionary Semi-Automated Rotary Microtome RF-800
- LCD touchscreen panel shows all cutting metrics
- Control panel provides easy and friendly controls
- Specimen clamp is compatible with multiple cassette sizes
- Cutting stage has blade guard and blade ejector for increased safety. Can also be used with high- or low-profile blades
- Large volume waste tray is removable for easy cleaning
- Top of microtome can be used for storage of consumables during cutting, saving space
- Smooth turning handwheel can be locked anywhere in the 360-degree turn, allowing for improved ergonomics
Applications
- Electrophysiology
- Immunohistochemistry
- Histopathology
- High-throughput Sectioning
- Large sample (whole organ) sectioning
- Precision-cut tissue slices (PCTS)
- Imaging
- Electron microscopy
- Genetic Sequencing (Single-cell isolation)
- In-situ hybridization
- Material and Bioengineering (Polymers)
- Organoids
- Organotypic slice culture
- Plant research
Specifications
Model Number | RF-800 |
Microtome Type | Semi Automated |
Section Thickness Range | 0-99.9µm (in 0.1 µm increments) |
Trimming Thickness Range | 0-999µm (in 0.1 µm increments) |
Minimum Section Thickness | 0.1µm |
Specimen Retraction | 0-99µm (Optional on/o ) |
Horizontal Specimen Stroke | 28mm |
Vertical Specimen Stroke | 57mm |
Sample Rotation | 4º rotation in X-Y axes |
Specimen feed speed | Electronically adjustable |
Dimensions (L x W x H) | 22 ¾ in x 16 in x 12 9/16 in |
Weight | 67 lb |
Voltage & Power | 100-120V, 60Hz |
Additional Accessories (Included for FREE!) |
Box of 50 cutting blades |
MSE supplies is an authorized distributor of Precisionary products and accessories.
