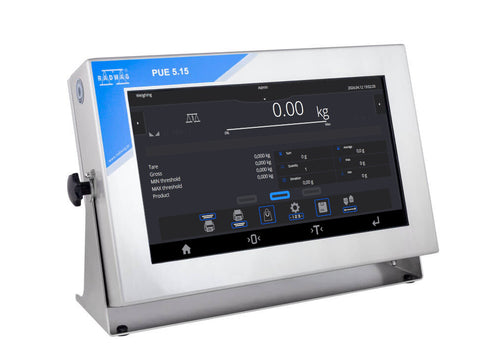

RADWAG PUE 5 Weighing Terminal
SKU: WX-008-0035
RADWAG PUE 5 Weighing Terminal
Buy RADWAG products from MSE Supplies at the best value.
|
Sku # |
WX-008-0035 |
WX-008-0036 |
WX-008-0033 |
WX-008-0037 |
WX-008-0038 |
WX-008-0034 |
|
Model # |
PUE 5.15IR |
PUE 5.15C |
PUE 5.15R |
PUE 5.19IR |
PUE 5.19C |
PUE 5.19R |
|
Protection class |
IP 67 |
IP 67 |
IP 67 |
IP 67 |
IP 67 |
IP 67 |
|
Housing |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
The terminals are intended to designing scales with maximum resolution of 6000 e. PUE 5 series, similarly to the basic model, are enclosed in a stainless steel housing which allows for reaching the highest IP rating, i.e. IP 67.
The terminals come standard with interfaces: 2 × RS232, 1 × RS485, 1 x Ethernet, 4 x USB 2.0.
PUE 5 series can be extended by additional 3 weighing modules for simultaneous operation of maximum 4 weighing platforms.
Intended Use:
The terminal PUE 5 series is a multifunctional weighing device. It combines the best features of a PC computer and a scale. The PUE 5 operates on basis of OS Windows, creating the best option for configuring the device to individual customer requirements through installing corresponding application.
If applied with dosing or formula making systems, the PUE 5 allows for operation with multiple weighing platforms, and simultaneous dosing with full process control. A dosing or formula making system that is configured on basis of the terminal PUE 5 series does not require an additional PC computer. Database editing is possible from the level of PUE 5 touch screen display or an optional PC keyboard.
Area of Use:
Main applications for terminal PUE 5 series:
- Designing industrial load cell scales;
- Multiple weighing applications supervised by a computer system through Ethernet module;
- Possibility of connecting large quantity of additional weighing platforms to industrial terminals.
Terminal type:
PUE 5.15IR – infrared touch screen technology. IP67 protection class. Very high brightness and readability level. High resistance to moisture and dust. Very good mechanical resistance, operation in gloves enabled (material: latex, fabric or steel chain).
Datasheet
|
Model |
PUE 5.15IR |
PUE 5.15C |
PUE 5.15R |
PUE 5.19IR |
PUE 5.19C |
PUE 5.19R |
|
Metrological parameters |
||||||
|
OIML Class |
III |
III |
III |
III |
III |
III |
|
Maximum quantity of divisions from converter |
8388608 |
8388608 |
8388608 |
8388608 |
8388608 |
8388608 |
|
Maximum quantity of verification units |
6000 e |
6000 e |
6000 e |
6000 e |
6000 e |
6000 e |
|
Minimum volatge per verification unit |
0.4 µV |
0.4 µV |
0.4 µV |
0.4 µV |
0.4 µV |
0.4 µV |
|
Maximum voltage per verification unit |
3.25 µV |
3.25 µV |
3.25 µV |
3.25 µV |
3.25 µV |
3.25 µV |
|
Minimum load cell impedance |
80 Ω |
80 Ω |
80 Ω |
80 Ω |
80 Ω |
80 Ω |
|
Maximum load cell impedance |
1200 Ω |
1200 Ω |
1200 Ω |
1200 Ω |
1200 Ω |
1200 Ω |
|
Load cell excitation voltage |
5V |
5V |
5V |
5V |
5V |
5V |
|
Maximum increase of signa |
19.5 mV |
19.5 mV |
19.5 mV |
19.5 mV |
19.5 mV |
19.5 mV |
|
Connection of load cells |
4 or 6 przewodów |
4 or 6 przewodów |
4 or 6 przewodów |
4 or 6 przewodów |
4 or 6 przewodów |
4 or 6 przewodów |
|
Physical parameters |
||||||
|
Display |
15.6” graphic colour touchscreen |
19” graphic colour touchscreen |
||||
|
Device dimensions |
490×310×200 mm |
524×420×200 mm |
||||
|
Packaging dimensions |
560×360×240 mm |
590×470×240 mm |
||||
|
Net weight |
10.5 kg |
10.5 kg |
10.5 kg |
14 kg |
14 kg |
14 kg |
|
Gross weight |
11.5 kg |
12 kg |
12 kg |
15 kg |
15 kg |
16 kg |
|
Construction |
||||||
|
Protection class |
IP 67 |
IP 67 |
IP 67 |
IP 67 |
IP 67 |
IP 67 |
|
Touch panel |
infrared |
capacitive |
resistive |
infrared |
capacitive |
resistive |
|
Housing |
Stainless steel |
|||||
|
Communication interface |
||||||
|
Communication interface |
RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU |
4×USB 2.0 (2×USB-A, 2×M12 4P), Ethernet - 2×10/100/1000 Mbit (2×RJ45 hermetic), 2×RS232, RS485 (2×M12 8P) |
||||
|
Optional interfaces |
external buttons PRINT, TARE, START - terminal with 4IN/4OUT (M12 8P connector) is required, additional weighing platform module - max. 3 pcs, metrological parameters as in the main weighing platform |
|||||
|
Electrical parameters |
||||||
|
Power supply |
100 – 240 V AC 50/60 Hz |
|||||
|
Power consumption max. |
75 W |
75 W |
75 W |
75 W |
75 W |
75 W |
|
Environmental conditions |
||||||
|
Operating temperature |
0 — +40 °C |
0 — +40 °C |
0 — +40 °C |
0 — +40 °C |
0 — +40 °C |
0 — +40 °C |
|
Storage temperature |
-20 — +60 °C |
-20 — +60 °C |
-20 — +60 °C |
-20 — +60 °C |
-20 — +60 °C |
-20 — +60 °C |
|
Relative humidity |
10% — 85% RH no condensation |
|||||
|
Components and software |
||||||
|
Operating system |
Microsoft Windows 11 |
|||||
|
Processor |
Intel® Celeron® J6412 |
|||||
|
Chipset |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|||||
|
Memory |
16 GB RAM |
16 GB RAM |
16 GB RAM |
16 GB RAM |
16 GB RAM |
16 GB RAM |
|
Data memory |
SSD 128 GB |
SSD 128 GB |
SSD 128 GB |
SSD 128 GB |
SSD 128 GB |
SSD 128 GB |
*The power supply can be connected to the socket on the back of the balance housing or to the terminal.
