Reflection / Transmission / Absorption Spectro-Electrochemical Cell

Reflection / Transmission / Absorption Spectro-Electrochemical Cell

Buy Redox.me products from MSE Supplies at the best value.

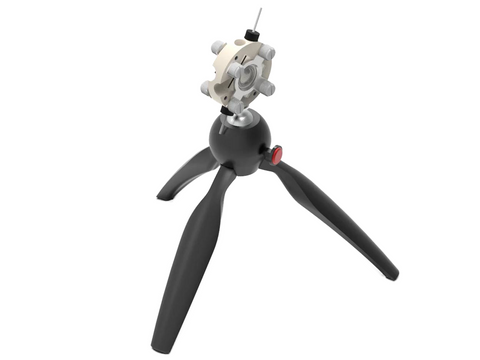

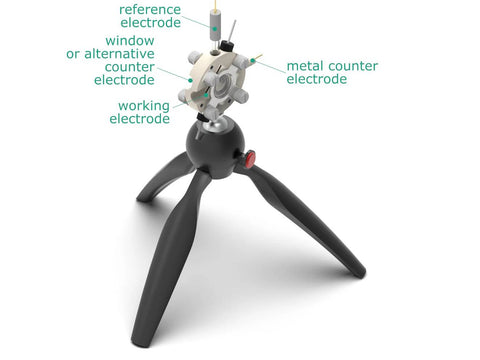

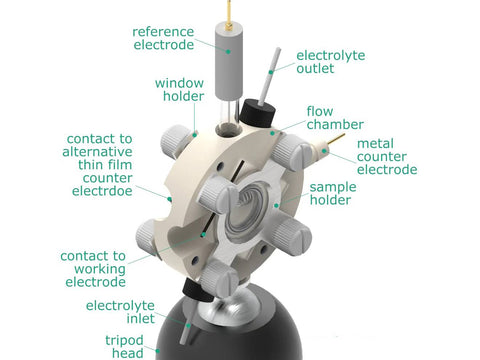

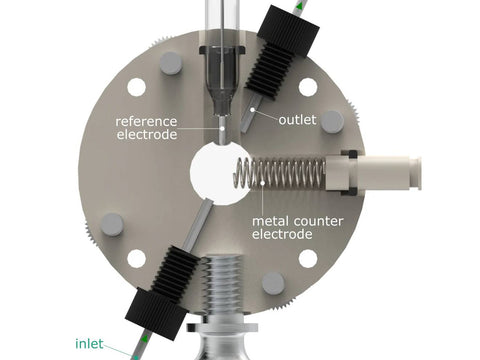

This is a horizontally mounted, multi-purpose spectroelectrochemical cell designed to be used with standard UV-Vis or IR spectrometers. It enables obtaining electrochemical and spectroscopic information from liquid sample or thin films in systems where variations in applied potential induce changes in observed spectra. It is perfect a solution for a fast prototyping of electrochromic windows and displays where both, working and counter thin film electrodes can be characterized. It consists of a polyether ether ketone (PEEK) flow chamber equipped with two screw mount sample/window holders and two different mini tripods. It well fits aqueous (FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The cell is meant to be used with standard reference electrode having 6 mm in diameter and counter electrode either in the form of a rod or helix with 6 mm in diameter and 15 mm active length.

Application note:

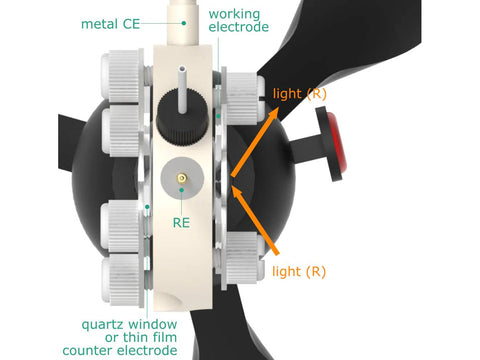

This spectroelectrochemical cell is used to study the relation between external reflectance, normal to the electrode transmittance/absorbance and electrochemical potential. It enables real-time monitoring of optical change in electrochromic thin film material. It also enables in-situ spectral acquisition for detection, identification and characterization of short-lived electrochemically-generated species/intermediates, resulting in a detailed investigation of the mechanistic pathways of redox processes.

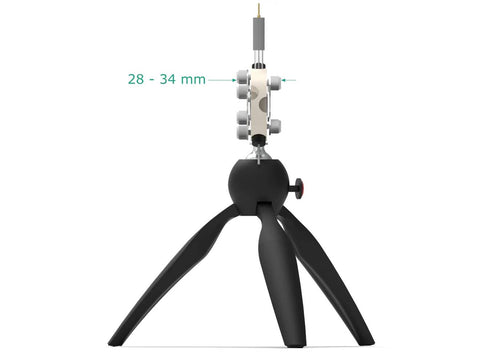

Specification:

Mominal exposure area: 1 cm² (other values on request)
Optical path length (electrolyte thickness): 11 mm
Flow chamber volume: 1.75 mL
Maximum substrate thickness: 4 mm
Electrode plug diameter: 6 mm
Minimum substrate size: 17 mm x 25 mm
Recommended substrate size: 25 mm x 25 mm

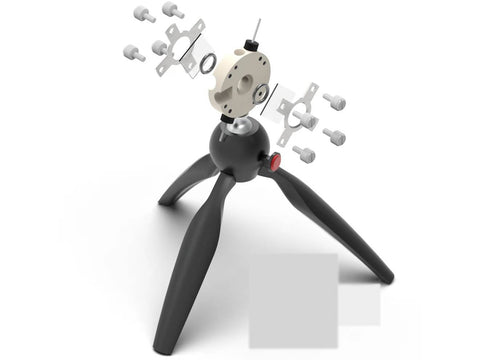

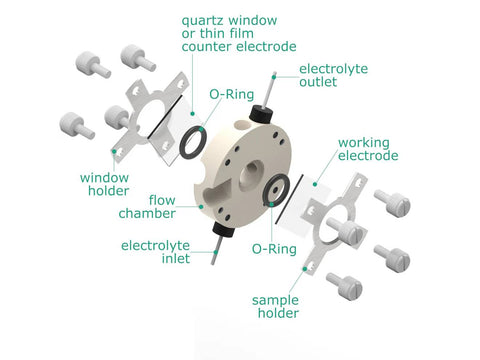

Product Includes

2 x sample/window mount
1 x flow chamber
1 x quartz window
1 x set of screws
1 x plug

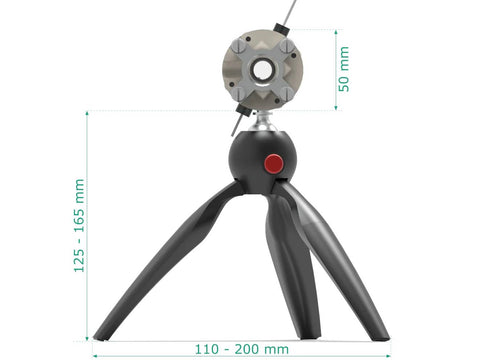

1 x Manfrotto PIXI table tripod – 0028PHYCM
1 x XS Bendy Flexible Tripod - 0043PHYCM
