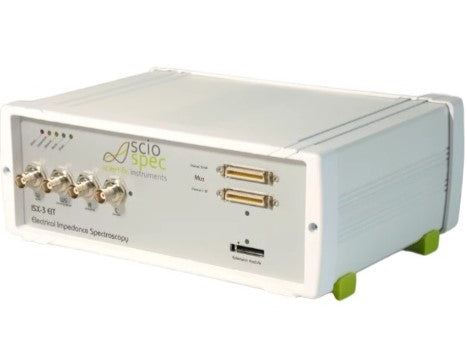

Sciospec ISX-3 EIT Impedance Analyzer

Sciospec ISX-3 EIT Impedance Analyzer

Impedance analyzers are commonly used in various fields such as electronics, telecommunications, materials science, and biology for characterizing the electrical behavior of components like resistors, capacitors, inductors, and complex circuits. The analyzer applies a known AC voltage or current to the device under test (DUT) and measures the resulting voltage and current to determine the impedance.

EIS and EIT. In one system.

Key Features

• IF Frontend 100 mHz…10 MHz, mOhm…TOhm
• Frequency extendable to 40 MHz or even 100 MHz
• 2, 3 and 4 electrode configurations
• High resolution (up to 2048 frequencies per sweep)
• Base precision of 0.01%
• +/- 1 V DC Bias
• ExtensionPort for application specific frontends
• Ultra-fast hardware synchronization through sync in/out connectors (optional)
• Simple connection through Full Speed USB, Ethernet or Wireless LAN
• PC-based control & data analysis (Sciospec software suit included)
• Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.

Highly flexible Any-to-Any Multiplexer

• 32 or 64 ports
• Any combination of ports for 2, 3 or 4 electrode impedance measurement
• Dedicated EIT mode (injection matrix like channel sweeps per frame)

Optional Modifications

• Frequency Ranges: 10MHz, 40MHz, 100MHz
• EIT-MUX Channel Count: 32 channels, 64 channels
• Frontpanel Connectors: BNC (Default), SMA, MCX, Banana Plug, DSUB, Other/Custom (Please Specify)
• Cable Sets: BNC-BNC 1m, BNC-Kelvin Clip Leads 1m, BNC-4mm Banana Plug 1m, BNC-MCX 0.8m, MUX Cable Set 1m (RG178; MDR-Banana Plug (+ Crocodile Clips)

Additional Functionality

• Medical grade power supply (Insulation Class II, EN60601-1 Compliant)
• IO Port: Additional connector w/ digital IOs, serial interfaces and NTC temp. sensors for hooking up external devices, smart sensors, etc.
• IsoIOport: Medical grade isolated additional connector w/ digital IOs, serial interfaces and NTC temp. sensors for hooking up external devices, smart sensors, etc.
• Medical Grade Enclosure Modification
• Sync Port: Ultra-fast hardware synchronization through one sync in and one sync out port (e.g. through low level isolated interface or optional isolated sync module), connector type: SMA
• Battery: Integrated battery pack for measurements up to 3 hrs.
• WiFi

Accessories

• Standard EIT Phantom Tank
• Custom EIT Phantom Tank (Please Specify)
• AC Coupling Interface (IEC 60384-14:2013 compliant Y2 capacitors w/ high isolation ratings. With the internal circuitry operating in SELV domain this complies w/ 2MOPP ratings)

• Compensation Kit (6 high precision wired resistors (1 Ohm, 10 Ohm, 100 Ohm, 1 kOhm, 10kOhm, and 100 kOhm) for connection to different fixtures (e.g. Component Test fixture 10MHz or 30MHz or Kelvin Clip Leads; including case for safe keeping)
• Dielectric Test Fixture (For measuring foils and thin films w/ thickness up to 10mm)
• Liquid Test Fixture (For measuring liquids and solutions)
• Component Test Fixture 10 MHz (For easy connection of wired components; measurements up to 10 MHz, short plate included)
• Component Test Fixture 30 MHz (For easy connection of wired components; measurements up to 30 MHz, short plate included)
• SMD Test Fixture (For connection of SMD components; SMD package types from 0201 to 2920)

Contact MSE Supplies to Customize the Sciospec ISX-3 Impedance Analyzer to Fix Your Needs!

User Manuals available upon request.

Sciospec is certified in accordance with ISO 9001 and ISO 13485.
