Standard Electrochemical Dual Holder Cell Setup

Standard Electrochemical Dual Holder Cell Setup

Buy Redox.me products from MSE Supplies at the best value.

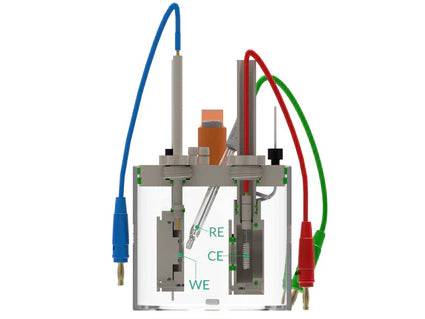

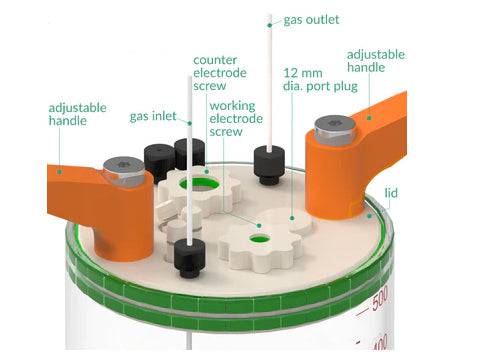

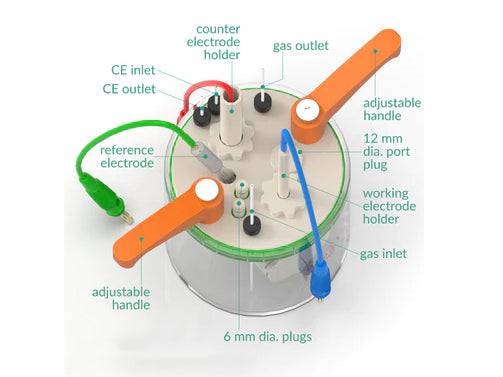

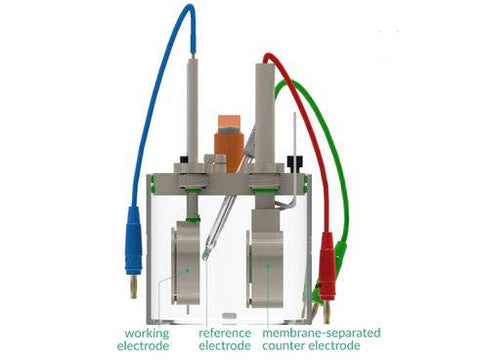

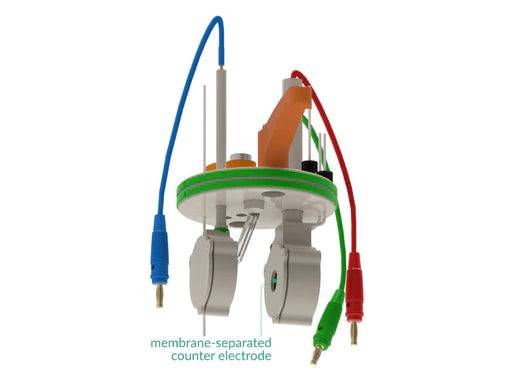

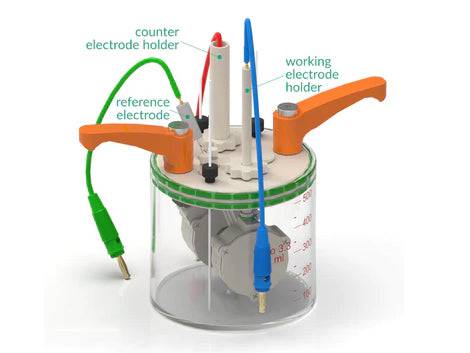

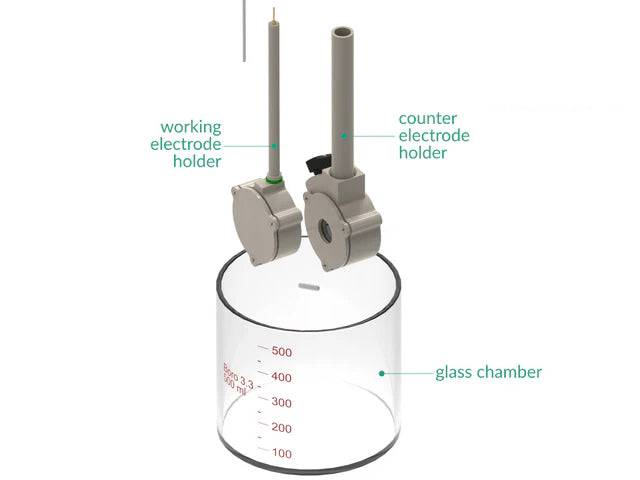

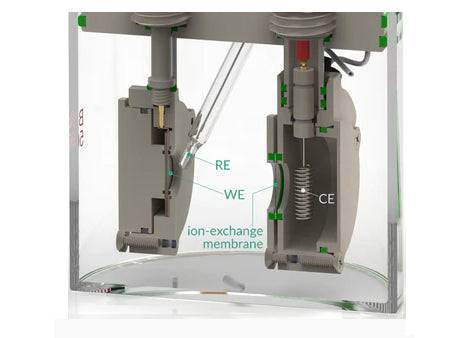

This is a stationary solution standard electrochemical (electrolytic) cell for measurements of electrodes in a form of: a) plate, b) foil, c) thin film deposited on flat substrate and d) free-standing films. The working electrode is installed in the sample holder (included in the setup). Other sample holders are available on request. The counter electrode of choice is installed in a counter electrode holder (included in the setup) and separated from the other electrodes by a membrane. The Ag/AgCl or Ag/Ag+ reference electrode (other types are available on request) is mounted in the top casing if 3-electrode setup is required. The cell has two spare ports for connection of e.g. thermometer, Clark electrode, pH meter electrode, or other 6 mm dia. electrode/probe.

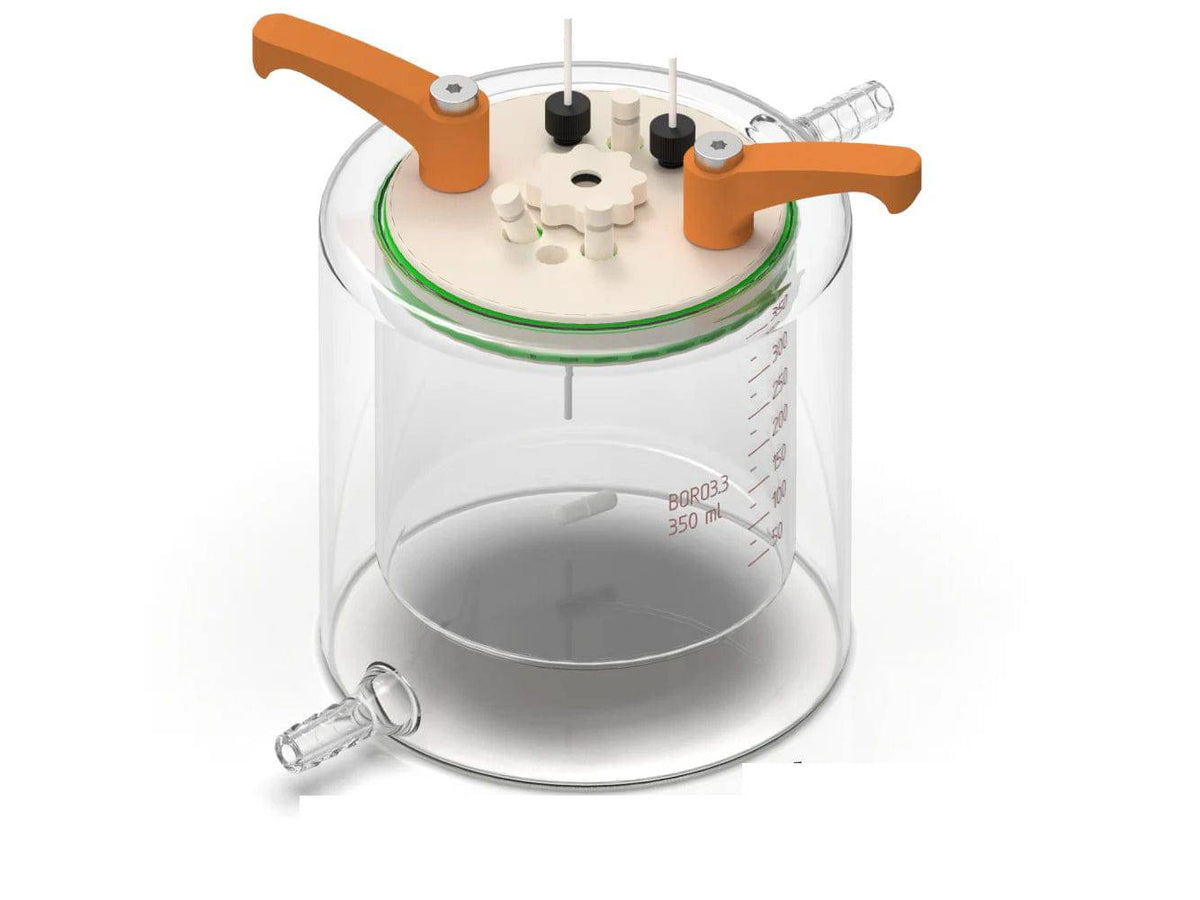

The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte.

Application note:

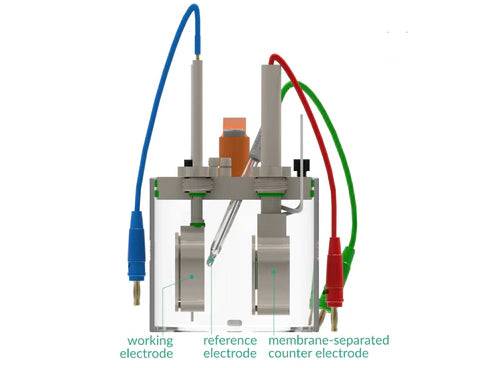

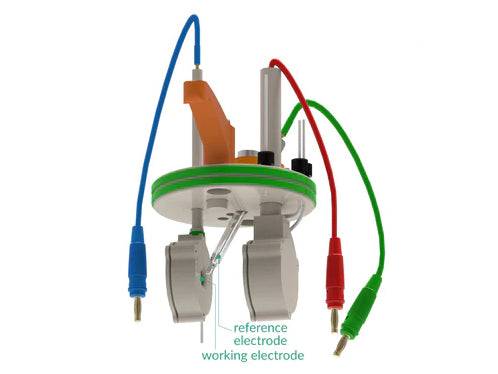

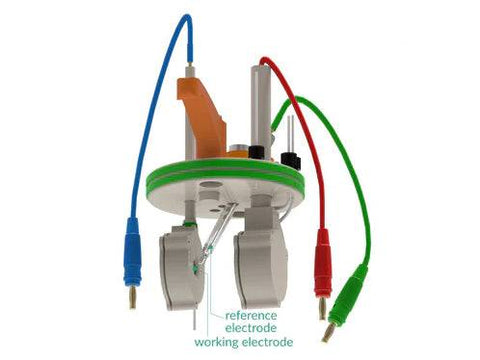

The reference electrode tip should be placed close to a working electrode center. This will ensure a low potential drop throughout the electrolyte solution for low-current experiment. Various 6 mm dia. auxiliary electrodes are suitable for this cell including metal wire, Graphite rod or Glassy Carbon rod.

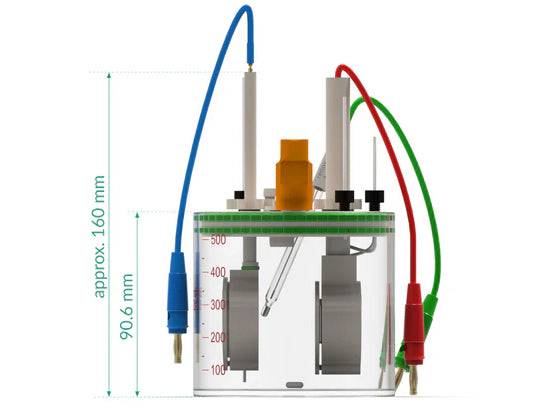

Specification:

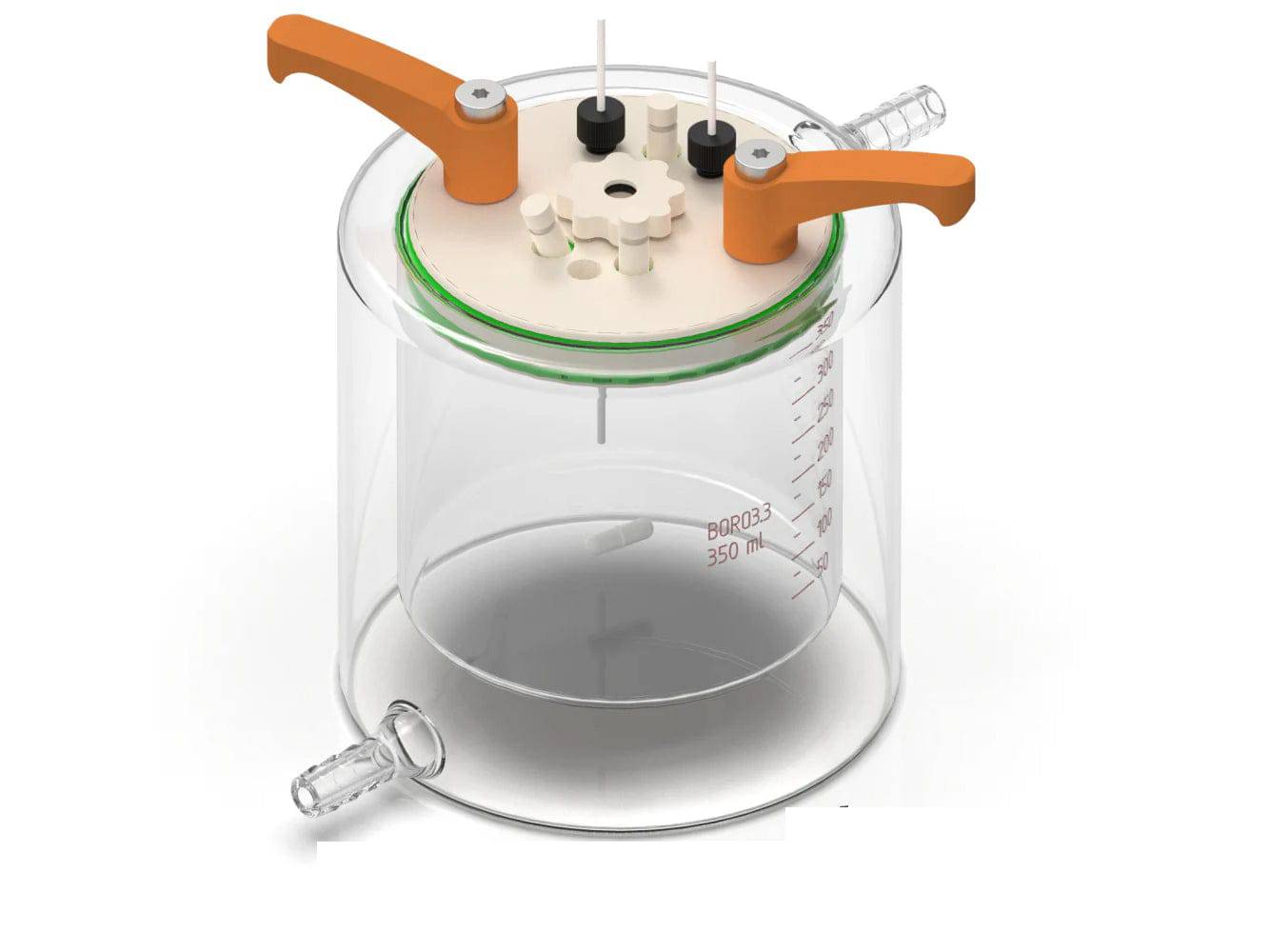

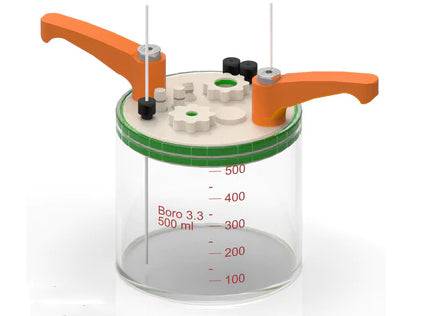

Maximum electrolyte volume: 350, 500 or 1000 mL
Electrode plug diameter: 6 mm and 12 mm
Number of electrode ports: 4 x 6 mm dia., 2 x 12 mm dia.
Glass chamber material: borosilicate 3.3 glass

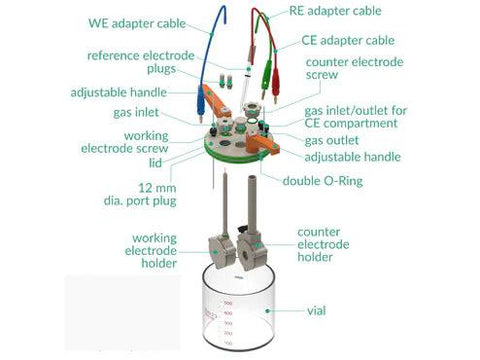

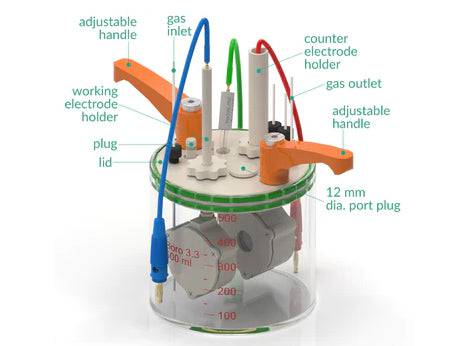

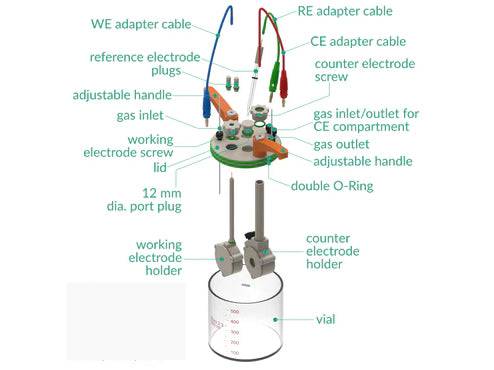

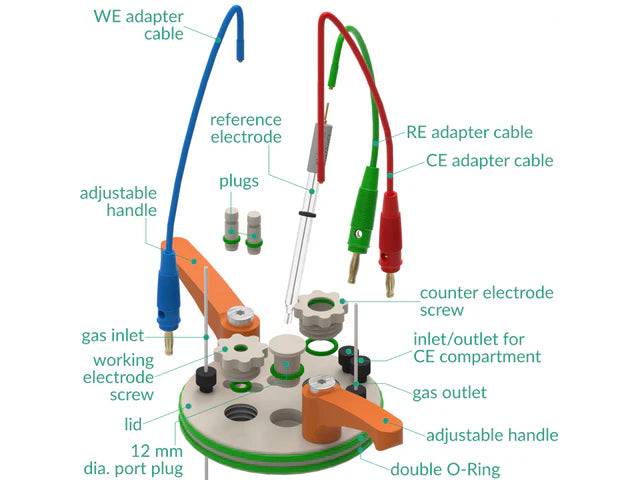

Product Includes

1 x lid
2 x adjustable handle
1 x glass chamber
1 x working electrode screw
1 x counter electrode screw
1 x Sample Holder 25 mm x 25 mm
1 x Counter Electrode Holder
3 x 6 mm dia. plug
1 x 12 mm dia. plug
3 x Electrode Adapter Cable

Setup Includes:

1 x Standard electrochemical dual holder cell - STD EC DUAL HOLDER CELL
      1 x lid
      2 x adjustable handle
      1 x glass chamber
      1 x working electrode screw
      1 x counter electrode screw
      1 x Sample Holder 25 mm x 25 mm
      1 x Counter Electrode Holder
      3 x 6 mm dia. plug – 0005CPEMA
      1 x 12 mm dia. plug
      3 x Electrode Adapter Cable
1 x Metal Wire Auxiliary Electrode - 50HX15 0.6/250 mm (Platinum)
1 x Graphite rod electrode - GR 6/70 mm
1 x Reference electrode (Ag/AgCl, or Ag/Ag+)
