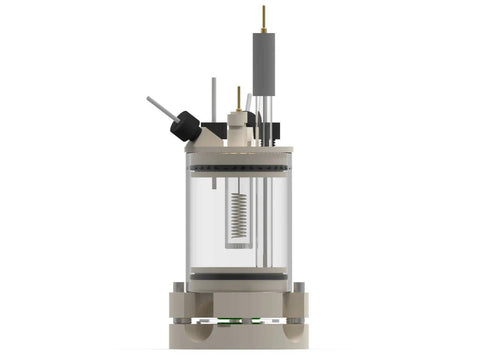

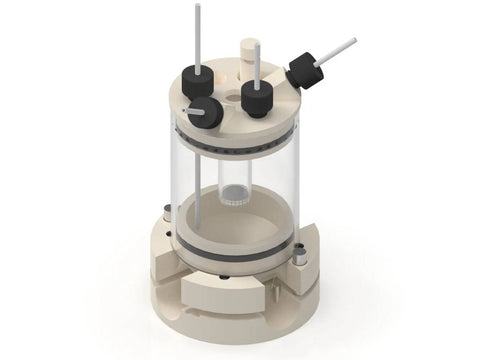

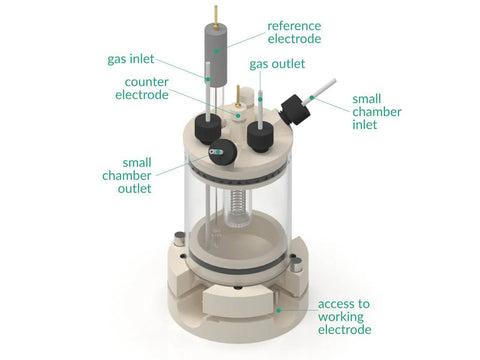

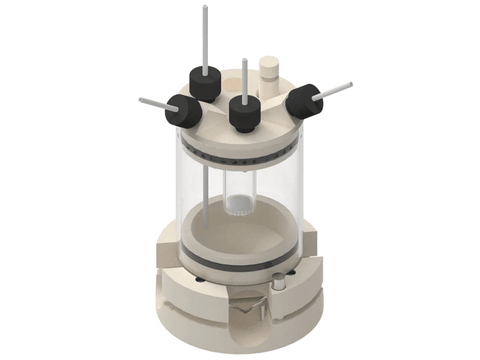

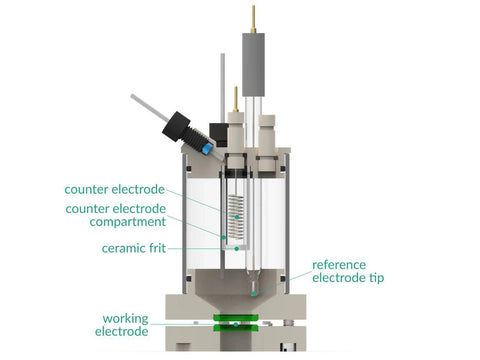

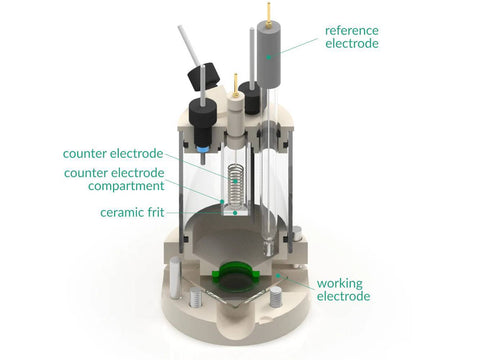

This is a stationary solution two-compartment cell for measurements of a thin film deposited on a flat substrate. The sample is loaded from the bottom via screw mount, while counter and reference electrodes are mounted in a top casing (either 2-, or 3-electrode setup). The counter electrode is placed in a small glass compartment separated from the other electrodes by a ceramic frit (2 mm thick Al₂O₃ nanoporous disk). This small compartment is equipped with a separate inlet and outlet for easy filling with an electrolyte and evacuation of gaseous products. The magnetic mount version of this cell, as well as customization for other substrates sizes is available on request.
The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte.

Application note:

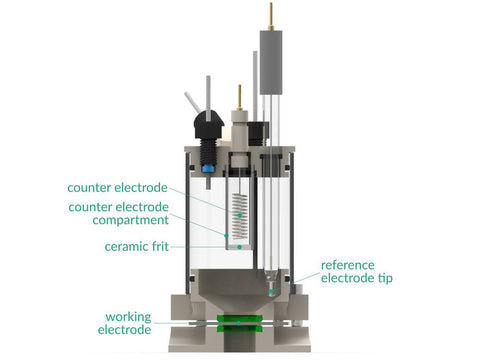

The reference electrode tip should be placed close to the bottom of the chamber (3-5 mm), where the working electrode is exposed to the electrolyte. This will ensure a negligible potential drop throughout the electrolyte solution for low-current experiment. Various auxiliary electrodes are suitable for this cell including metal wire and metal foil electrodes as well as graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

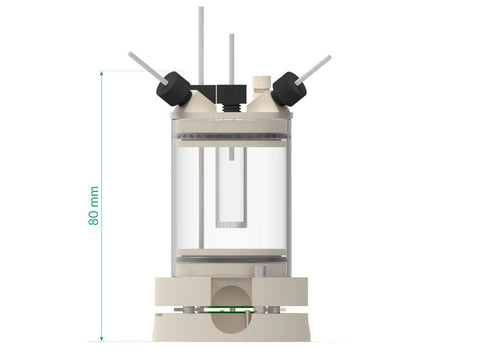

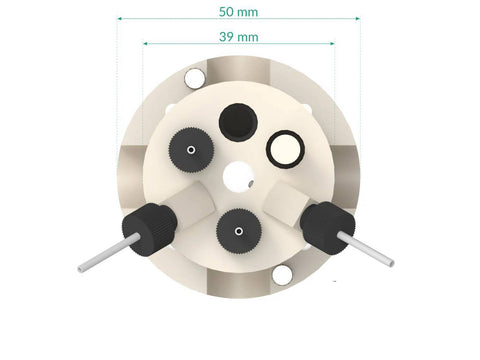

Specification:

Nominal exposure area: 1 cm²
Minimum electrolyte volume: 25 mL
Maximum electrolyte volume: 45 mL
Electrode plug diameter: 6 mm
Minimum substrate size: 17 mm x 25 mm
Recommended substrate size: 25 mm x 25 mm
Maximum substrate thickness: 4 mm
Number of electrode slots: 3

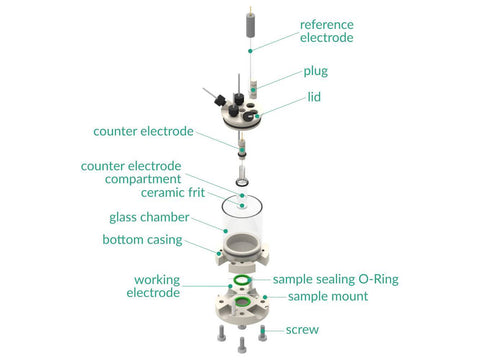

Product Includes

1 x lid
1 x glass chamber
1 x CE glass compartment – 0024PGLMA
1 x bottom casing
1 x sample mount
2 x plug

Setup Includes:

2-C Bm Ec 50 ml - Two-Compartment Bottom Mount Electrochemical Cell 50 Ml
Metal Wire Auxiliary Electrode - 50Hx15 0.6/250 mm, Platinum (99,9%), 1 mm Dia. Gold Plated Pin
Silver / Silver Chloride Reference Electrode - AG/AGCL 70 mm / Non-Aqueous Silver / Silver Ion Reference Electrode - AG/AG+ 70 mm
