Two-Compartment Electrochemical Cell Setup

Two-Compartment Electrochemical Cell Setup

Buy Redox.me products from MSE Supplies at the best value.

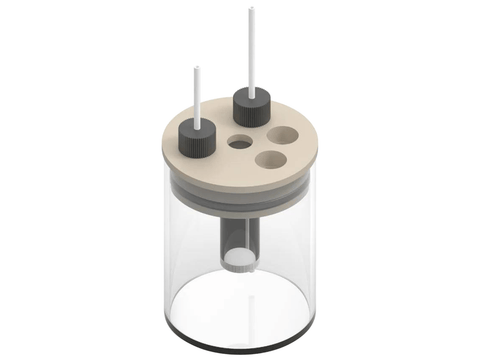

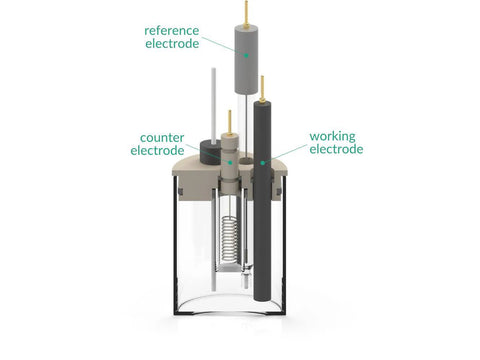

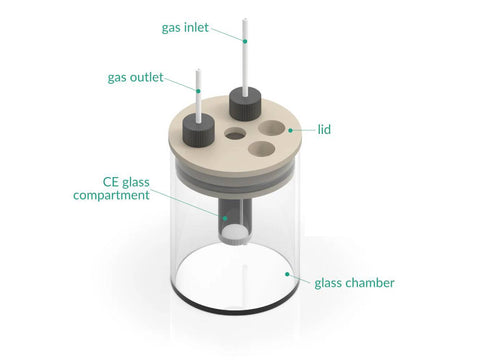

This is a stationary solution two-compartment electrochemical cell for measurements of electrodes in a form of: a) rod/disc (6 mm dia.), b) thin film deposited on flat substrate (using a wire clip) and c) membrane (using a wire clip). The working, counter and reference electrodes are mounted in a top casing either in 2-, or 3-electrode setup. The counter electrode is placed in a separate glass compartment separated from the other electrodes by a ceramic frit. The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (FKM/EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte. After removal of the counter electrode glass compartment, the cell gets the functionality of a Basic Electrochemical Cell – BEC 50 mL

Application note:

The reference electrode tip should be placed at the level of working electrode center. This will ensure a low potential drop throughout the electrolyte solution for low-current experiment. Various auxiliary electrodes are suitable for this cell including metal wire and metal foil electrodes as well as graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

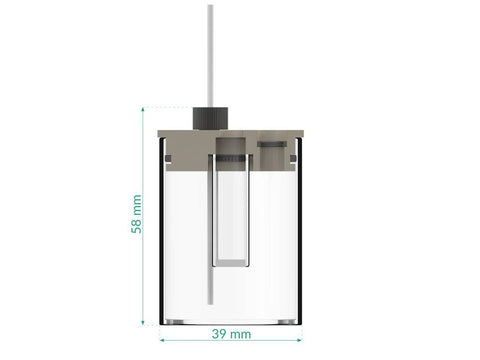

Specification:

Maximum electrolyte volume: 50 mL
Electrode plug diameter: 6 mm
Number of electrode slots: 3

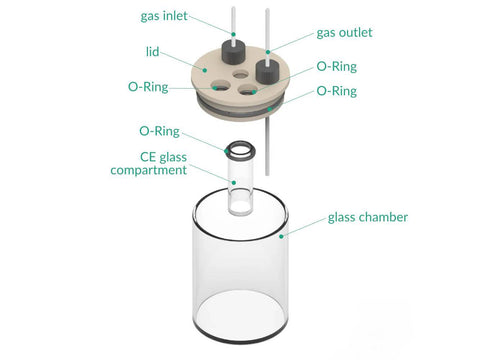

Product Includes

1 x lid – 0023CPEMA
1 x glass chamber
1 x CE glass compartment – 0024PGLMA
1 x plug

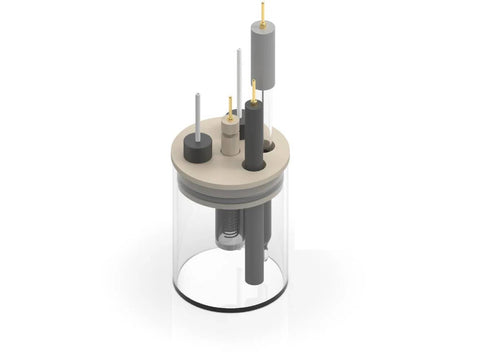

Setup Includes

2-Cec 50 ml - Two-Compartment Electrochemical Cell
Metal Wire Auxiliary Electrode - 50Hx15 0.6/250 mm, Platinum (99,9%), 1 mm Dia. Gold Plated Pin
Silver / Silver Chloride Reference Electrode - AG/AGCL 70 mm / Non-Aqueous Silver - AG/AG+ 70 mm
10 Pcs Of Tantalum Wire Clip With Septum Plug 0.6 mm Dia., 60 mm Long
