Universal Shaker SM 30 C control (Edmund Buhler, Made in Germany)
SKU: 6304000
Description

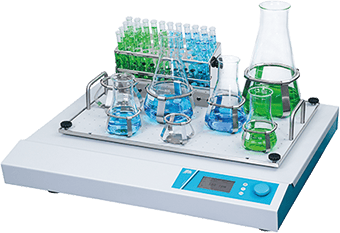

The Edmund Buhler Universal Shaker SM 30 C control with digital display and programmable control has a variable shaking motion that can be switched from orbital to horizontal. This guarantees flexibility for different applications with one device. The universal shaker is ideally suited for high loads up to 30 kg and for mixing difficult media. The wide choice of rack systems ensures optimal fastening of different vessels.
Basic Equipment
Basic device with shaking plate and rubber mat, without rack system
With digital display and programmable control
Loading Capacity and Accessories
Erlenmeyer flasks 100 ml 42 pieces
Erlenmeyer flasks 250 ml 20 pieces
Erlenmeyer flasks 500 ml 6 pieces
Erlenmeyer flasks 1000 ml 2 pieces
Test tube racks 4 pieces
Rack System Combifix SM A, p/n 0050 154
Rack System Combifix SM B, p/n 0050 155
Rack System Combifix SM C, p/n 0050 156
Universal tray SM, p/n 0051 472
2-story top frame SM, p/n 0052 065
Incubator Hood TH 30, p/n 6162 000
Options
Control interface, p/n 0052 211
USB interface, p/n 0052 210
Details
Motion: | can be switched from orbital to reciprocating (horizontal) motion |
Shaking platform: | 560 x 400 mm |
Max. load: | 30 kg |
Shaking speed: | 15 - 300 rpm, in steps of 5 |
Stroke: | 26 mm |
Timer: | programmable / continuous |
Order No.: | 6304 000 (115V version) |
Technical specifications
Electrical supply: | 230 V or 115 V, 50 / 60 Hz - please specify |
Enclosure protection: | IP 21 |
Heat emission: | approx. 20 - 30 W |
Ambient temperature: | 5 deg C to 50 deg C |
Relative humidity: | ~ 85 % |
Dimensions (w x d x h): | 680 x 610 x 160 mm |
Weight: | 33 kg |
