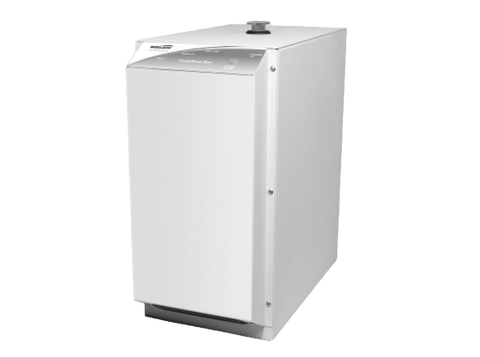

Welch 6.9 CFM 2070 ChemStar Dry Vacuum Pump
SKU: 2070B-01
Buy Welch vacuum pumps from MSE Supplies at the best value.
With the revolutionary oil free ChemStar Dry vacuum system, you get the advantages of two combined technologies: roots blower and diaphragm vacuum pump. The result is an oil-free, software-driven vacuum system, ready to work on your tough chemical applications.
ChemStar® Dry was developed for laboratory operations which require high pumping speed and deep vacuum, such as vacuum manifolds (Schlenk line), freeze dryer, vacuum oven and glove boxes. The system combines a proprietary vacuum blower with patented PTFE diaphragm technology to pump quickly down (150 l/min) to the working range for most evaporative operations (2.0 to 0.1 mbar) with an ultimate pressure of 10-2 mbar.
Product Benefits
- Deep Vacuum
- Chemical Resistant
- Plug & Play
- Oil Free
Applications
- Schlenk Line
- Freeze Dryer
- Vacuum Oven
- Glove Boxes
- Concentrator
MSE Supplies is an authorized distributor of Welch vacuum pumps.
Technical Data
| SKU# | 2070B-01 |
| Free Air Displacement @60Hz 115V, CFM (L/min) | 6.9 (196) |
| Ult. Vac. Pressure, Torr / (mbar) | 5x10-2 / (7x10-2) |
| Inlet / Outlet Connection NW |
25 |
| Sound Level (dB) |
57 |
| Weight, lbs. (kg) | 50.7 (23) |
