Witeg Baths WCL Circulation Water Bath 8/12/22/30 Liter, -35°C Down to 150°C ±0,1°C

Witeg Baths WCL Circulation Water Bath 8/12/22/30 Liter, -35°C Down to 150°C ±0,1°C

SKU: DH.WCL00408

  • $ 3,87495
  • Save $ 46499

Witeg Baths WCL Circulation Water Bath 8/12/22/30 Liter, -35°C Down to 150°C ±0,1°C

Buy Witeg products from MSE Supplies at the best value.

Description

Ideal for:

  • Connection with evaporator

Features:

  • Stainless steel bath, polyurethane insulation of 40 mm thickness and body made of powder-coated steel
  • Innovated refrigeration system ensures temperature performance, includes intelligent control for preventing compressor overload, CFC-free (R-404A)
  • Innovated powerful circulation pump ensures temperature uniformity: internal and external circulation and 5 steps circulation speed
  • Stainless steel flat lid & valve ball included, dome lid optional
  • RS232C interface: remote monitoring and controlling with PC
  • Proper liquid level tag in bath
  • User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
  • Backlight LCD display
  • CE certified and unique serial number for tracing

Safety mechanism:

  • Overheat and over-current protection
  • sensor error detection and leakage breaker
  • Low liquid level warning and automatic stop function
  • Locking mode

Controller:

  • Digital fuzzy controller with Jog-Dial-switch (turn + push) & capacitive touch button

Features

Devices with 230 V power supply can also be supplied with 120 V on request.

Technical data

Width (inner)

175 mm

Height (inner)

150 mm

Length (outer)

523 mm

Ideal for

Connection with evaporator

Pressure

7.5 psi

Heating power

1000 W

Effective space

175 x 153 x 150 mm

Temperature variation

±0.2°C to -20°C

Temperature range

-35°C - +150°C

Packing size

630 x 530 x 972 mm

Cooling capacity

500 W at +20°C, 340 W at 0°C, 200 W at -20°C

Flow rate

25l/Min.

Length (inner)

320 mm

Width (Outer)

400 mm

Height (outer)

807 mm



Connections

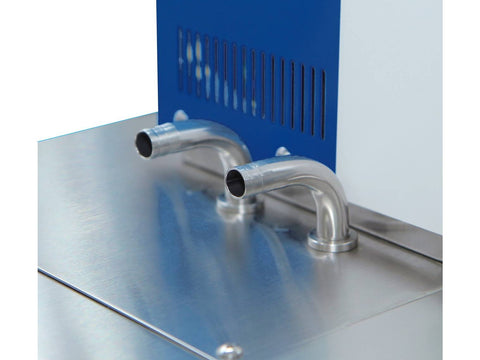

External circulation nozzle: inner: Ø10.5mm, outer Ø12.5mm, for inner circulating: connect directly the in-/outlet nozzles

Weight with packaging

50 kg

Capacity

8 l

Pump performance

25 l/min., max. lift: 4 m

Temperature control resolution

Display 0.1°C, control 0.1°C

Temperature accuracy

±0.1°C

Refrigerator

370 W

Controller

Temperature sensor PT100



Comparison

SKU Model Width (inner) Length (inner) Height (inner) Width (Outer) Length (outer) Height (outer) Ideal for Connections Pressure
DH.WCL00408 WCL-8 230 V 175 mm 320 mm 150 mm 400 mm 523 mm 807 mm Connection with evaporator External circulation nozzle: inner: Ø10.5mm, outer Ø12.5mm, for inner circulating: connect directly the in-/outlet nozzles 7.5 psi
DH.WCL00412 WCL-12 230 V 230 mm 350 mm 150 mm 400 mm 523 mm 807 mm Connection with evaporator External circulation nozzle: inner: Ø10.5mm, outer Ø12.5mm, for inner circulating: connect directly the in-/outlet nozzles 7.5 psi
DH.WCL00422 WCL-22 230 V 290 mm 390 mm 200 mm 483 mm 563 mm 850 mm Connection with evaporator External circulation nozzle: inner: Ø10.5mm, outer Ø12.5mm, for inner circulating: connect directly the in-/outlet nozzles 7.5 psi
DH.WCL00430 WCL-30 230 V 330 mm 460 mm 200 mm 494 mm 633 mm 906 mm Connection with evaporator External circulation nozzle: inner: Ø10.5mm, outer Ø12.5mm, for inner circulating: connect directly the in-/outlet nozzles 7.5 psi



SKU Temperature range Temperature accuracy Packing size Refrigerator Cooling capacity Controller Flow rate
DH.WCL00408 -35°C - +150°C ±0.1°C 630 x 530 x 972 mm 370 W 500 W at +20°C, 340 W at 0°C, 200 W at -20°C Temperature sensor PT100 25l/Min.
DH.WCL00412 -35°C - +150°C ±0.1°C 630 x 530 x 972 mm 370 W 530 W at +20°C, 370 W at 0°C, 210 W at -20°C Temperature sensor PT100 25l/Min.
DH.WCL00422 -35°C - +150°C ±0.1°C 670 x 615 x 1022 mm 650 W 860 W at +20°C, 620 W at 0°C, 400 W at -20°C Temperature sensor PT100 25l/Min.
DH.WCL00430 -35°C - +150°C ±0.1°C 740 x 625 x 1072 mm 750 W 1030 W at +20°C, 760 W at 0°C, 500 W at -20°C Temperature sensor PT100 25l/Min.



SKU Weight with packaging Heating power Capacity Effective space Pump performance Temperature variation Temperature control resolution
DH.WCL00408 50 kg 1000 W 8 l 175 x 153 x 150 mm 25 l/min., max. lift: 4 m ±0.2°C to -20°C Display 0.1°C, control 0.1°C
DH.WCL00412 55 kg 1500 W 12 l 230 x 181 x 150 mm 25 l/min., max. lift: 4 m ±0.2°C to -20°C Display 0.1°C, control 0.1°C
DH.WCL00422 65 kg 2000 W 22 l 290 x 220 x 200 mm 25 l/min., max. lift: 4 m ±0.2°C to -20°C Display 0.1°C, control 0.1°C
DH.WCL00430 78 kg 2200 W 30 l 330 x 290 x 200 mm 25 l/min., max. lift: 4 m ±0.2°C to -20°C Display 0.1°C, control 0.1°C
