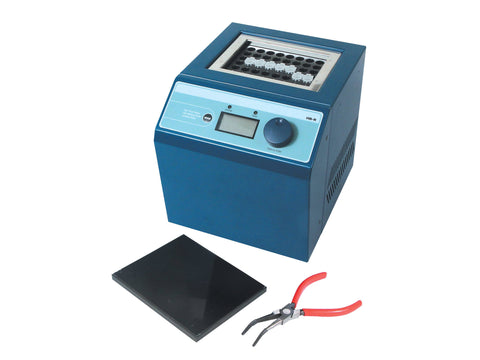

Witeg Dry Bath (Incubator) HB-R48 1 Block -5°C up to 95°C
SKU: DH.WHB00248
Witeg Dry Bath (Incubator) HB-R48 1 Block -5°C up to 95°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Enzyme reactions, inactivation of sera, incubation and other laboratory procedures
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- User‘s self-compensation function to offset between real temperature and indicated temperature (±10.0°C)
- Unit made of stainless steel and powder-coated steel, block made of anodized aluminium
- 2 peltier cooling modules
- Unit made of stainless steel and powder-coated steel, block made of anodized aluminium
- Block extraction tongs “BLE101” and block cover are included
- Molded heater (300W), PT100 sensor
- Storage function for the set values of temperature and timer
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism
- Locking mode
- Overheat and over-current protection
- Sensor error detection
Controller
- Digital PID and fuzzy controller with Jog-Shuttle-switch
Technical data
| Width (inner) | 90 mm |
| Height (inner) | 60 mm |
| Length (outer) | 230 mm |
| Cooling time | 2.3°C/min. between 95°C to 25°C, 0.5°C/min. between 25°C to -5°C |
| Weight with packaging | 9 kg |
| Temperature range | Room temperature -5°C to 95°C |
| Packing size | 350 x 220 x 310 mm |
| Length (inner) | 120 mm |
| Width (Outer) | 185 mm |
| Height (outer) | 220 mm |
| Heating time | approx. 5°C/min |
| Power consumption | 450 W |
| Temperature accuracy | ±0.1°C at 37°C, ±0.2°C to 90°C |
Comparison
| SKU | Model | Version | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Cooling time | Heating time | Weight with packaging | Power consumption | Temperature range | Temperature accuracy | Packing size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WHB00248 | HB-R48 unit 230 V | 90 mm | 120 mm | 60 mm | 185 mm | 230 mm | 220 mm | 2.3°C/min. between 95°C to 25°C, 0.5°C/min. between 25°C to -5°C | approx. 5°C/min | 9 kg | 450 W | Room temperature -5°C to 95°C | ±0.1°C at 37°C, ±0.2°C to 90°C | 350 x 220 x 310 mm | |
| DH.WHB00249 | HB-R48 set 230 V | incl. standard block with 48 holes for 1.5/2 ml centrifuge tubes | 90 mm | 120 mm | 60 mm | 185 mm | 230 mm | 220 mm | 2.3°C/min. between 95°C to 25°C, 0.5°C/min. between 25°C to -5°C | approx. 5°C/min | 9 kg | 450 W | Room temperature -5°C to 95°C | ±0.1°C at 37°C, ±0.2°C to 90°C | 350 x 220 x 310 mm |
