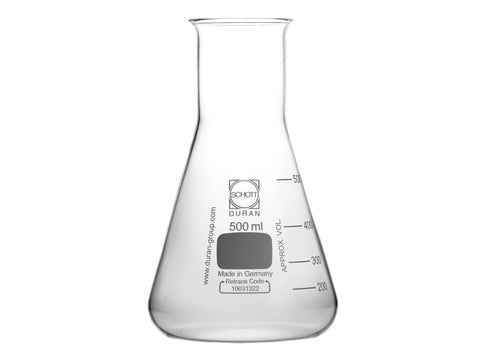

Witeg Erlenmeyer Flask Wide Neck With Rim
SKU: 5 508 001
Witeg Erlenmeyer Flask Wide Neck With Rim
Buy Witeg products from MSE Supplies at the best value.
Description
- Erlenmeyer flask, wide neck
- With rim
- DURAN® glass
- With graduation
- According to DIN ISO 24450 (except 200 ml, 300 ml und 2000 ml)
Technical data
| Version | with rim |
| Material | DURAN® glass |
| Diameter | neck: 50 mm, max.: 131 mm |
| Height(outer) | 220 mm |
| Form | wide neck |
| Capacity | 1000 ml |
| Graduation | yes |
| DIN | DIN ISO 24450 |
Comparison
| SKU | Model | Version | Form | Material | Capacity | Diameter | Graduation | Height(outer) | DIN |
|---|---|---|---|---|---|---|---|---|---|
| 5 508 001 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 1000 ml | neck: 50 mm, max.: 131 mm | yes | 220 mm | DIN ISO 24450 |
| 5 508 002 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 2000 ml | neck: 72 mm, max.: 153 mm | yes | 276 mm | DIN ISO 24450 |
| 5 508 025 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 25 ml | neck: 31 mm, max.: 43 mm | yes | 70 mm | DIN ISO 24450 |
| 5 508 050 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 50 ml | neck: 34 mm, max.: 51 mm | yes | 85 mm | DIN ISO 24450 |
| 5 508 100 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 100 ml | neck: 34 mm, max.: 64 mm | yes | 105 mm | DIN ISO 24450 |
| 5 508 200 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 200 ml | neck: 50 mm, max.: 79 mm | yes | 131 mm | DIN ISO 24450 |
| 5 508 250 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 250 ml | neck: 50 mm, max.: 85 mm | yes | 140 mm | DIN ISO 24450 |
| 5 508 300 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 300 ml | neck: 50 mm, max.: 87 mm | yes | 156 mm | DIN ISO 24450 |
| 5 508 500 | Erlenmeyer flask | with rim | wide neck | DURAN® glass | 500 ml | neck: 50 mm, max.: 105 mm | yes | 175 mm | DIN ISO 24450 |
