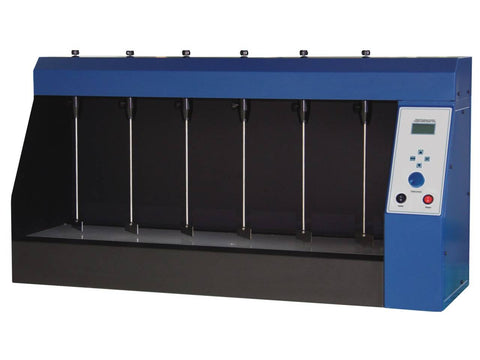

Witeg Jar Tester JT-M6C, 6 Places, 20-300RPM
SKU: DH.WJT06020
Witeg Jar Tester JT-M6C, 6 Places, 20-300RPM
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Flocculation test in water treatment laboratories
- Coagulation chemistry
Features:
- 20 - 300 rpm
- 6 places
- 6 light sources
- Programmable operations (6 programs with 10 steps)
- Geared motor (ratio: 10:1)
- Digital LCD for rpm, power-bar, status and programming

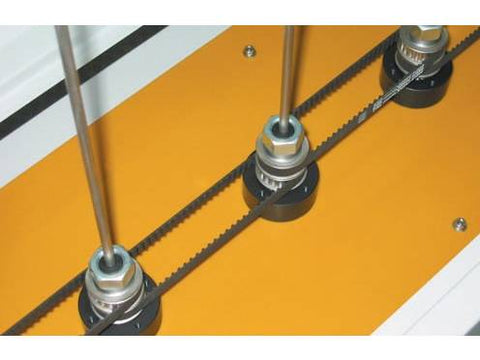

- Special designed timing belt
- CE certified and unique serial number for tracing
Safety mechanism:
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Overload protection
- Overheat protection
- Operation LEDs
Controller:
- Programmable digital feedback controller with Jog-Shuttle switch (turn + push)
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Version |
6 stirring points |
|
Length (outer) |
310 mm |
|
Ideal for |
Flocculation test in water treatment laboratories, coagulation chemistry |
|
Blades |
straight blade B 75 x H 25 mm |
|
Weight |
37 kg |
|
Capacity |
6 x 1 l beaker |
|
Packing size |
1120 x 430 x 740 mm |
|
Width (Outer) |
1000 mm |
|
Height (outer) |
535 mm |
|
Illumination |
6 x 20 W (light sources) |
|
Speed |
20-300 rpm, control resolution 5 rpm (geared DC motor ratio 10:1, 40 W) |
|
Weight with packaging |
69 kg |
|
Stirrer diameter |
Ø8 x L400 mm |
