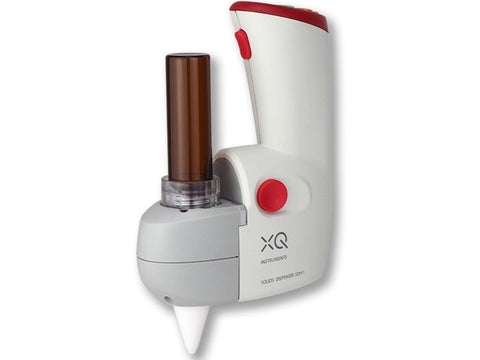

XQ Automated SDH-1 Handheld Powder Dispenser
SKU: DP1802-DSPS
XQ Automated SDH-1 Handheld Powder Dispenser
The XQ Instruments SDH-1 handheld Solids Dispenser can dispense calibrated volumetric doses (and multiples) of powders in a highly precise and repeatable fashion.
The standard SDH-1, with small dispensing head, comes with 10 volumetric dispensing disks (the dosing element) covering the dose volume range of 2.5mm³-300mm³. Additional dispensing disks can be supplied which are calibrated precisely to specific dose volumes. A calibration certificate is provided.
Sample size requirement for Machine Calibration:
At least 20x of dosage requirements (e.g. 40 grams for a dosage of 2 grams)
-
Increased lab productivity and ease of use
The Solids Dispenser increases the speed of dispensing solid/powder samples while retaining the flexibility of freehand processing. -
Occupational health of operators
Work monotony and operator fatigue in repetitive processing of samples is relieved by automatic portioning and dispensing with the SDH-1. -
Continuous precision
Solid/powder sample portions are processed accurately with the SDH-1 with each volume consistently within a tight tolerance eliminating errors of manual processing.
The SDH-1 increases lab productivity and at the same time ensures process accuracy. Compared to other automatic powder dispensers the volumetric dispensing is particularly fast (2.5-3.5sec. per dose).
Due to its compact handheld configuration, it is easy to integrate in the workflow and alleviates tedious repetitive powder dosing tasks. The dispensing heads are interchangeable to enable quick processing of several materials with different dose size and no cross-contamination without cleaning steps.
The SDH-1 is light weight, battery operated for freehand solids dosing. An LED display shows the dose increments being dispensed. It is cordless and can be charged from the AC power socket, switching 115V/230V.
A mid-size dispensing head is also available to reach larger dose volumes up to 700mm³.
|
Volume calibration range Single dose |
Maximum dose mass for a bulk density of 1.0 g/ml |
Compatible with Dispenser |
Reservoir size |
|
|
SDM-1 |
2.3mm³ - 300mm³ |
300mg |
SDM-1 |
40ml, 60ml; glass vials Bottles 2oz, 4oz |
|
Small head |
300mg |
SDH-1, SDB-1 |
40ml, 60ml; glass vials Bottles 2oz |
|
|
Mid-size head |
2.3mm³ - 715mm³ |
715mg |
SDH-1, SDB-1 |
150ml; PC tube |
|
Large Head |
8,1g |
SDH-1, SDB-1 |
200ml, 400ml, 1l ; PC tube |
|
|
XL Head |
78g |
SDB-2 |
5l; PC tube |
Specifications
| Performance | • Solid Dispenser accuracy will remain over time | ||
| • One-time calibration for each powder type. | |||
| • Cordless rechargeable operation. | |||
| Dispensing advantages: | • Usable with different solids/powders. | ||
| • Typical dispensing range from 5 to 250 mg. | |||
| • Easily interchangeable dispensing heads. | |||
| • Standard glass vials as reservoir` | |||
| • Separation between dispensing unit and dispensing head. | |||
| • LED display provides information on amount being dispensed. | |||
| • High repeatability | |||
| • High accuracy | |||
| • Smallest dose volumes feasible | |||
| • Easy to use and maintain | |||
| • Low voltage | |||
| Specifications | • Size: 54 (L) x 152 (W) x 225 mm (H) | ||
| • Charger switching: 115V or 230V | |||
| • Dosing heads available: Small for dose size calibration in a range of 2.5mm³ – 300mm³ and Medium for 2.5mm³ – 700mm³ | |||
| • Power rating: 3W max | |||
| • Weight: 500 g | |||
| Warranty | 1 year | ||
| Typical Dispensed Powders: | Aerosil | Disodium Hydrogen Phospahte Anhydrous | Potassium Metabisulfite |
| Agar (T.C. Grade) | Elderberry | Potassium Nitrate (OxP154) | |
| Agar Noble | Elderberry Extract | Potassium Phosphate (K3PO4 ) | |
| Agarose | Epsom Salt | Potassium Sulfate | |
| Algae (Spirulina) | Ethylene Glycol Reagent | Pronase | |
| Aluminium Silicon | Flour | Protainese K | |
| Amino Acid | Gabapentin | Protein Diet | |
| Ammonium chloride (NH4Cl) | Glass Beads | PVDF | |
| Anasorb Solvent | Granular fish feed | ReliOx Resin | |
| AP100 | Graphitize Carbon Black Powder | Resin | |
| Asar | Ground Glass | Siliasphere Phenyl, 70A (Microbeads) | |
| Bacto Agar | Ground Glass & UHMC-PE | Silica Based Powder | |
| Baking Soda (NaHCO3) | Gypsum | Silica Gel (SiliaFlash® F60) 40-63µm (0.040-0.063 mm) | |
| Bentonite | Iron (Fe) | Sodium Ascorbate (Ascorbic Acid) | |
| Bismuth oxide | Lactose | Sodium Bicarbonate | |
| Bleaching Powder (Ca(OCI)²) | Lidocaine Hydrochloride | Sodium Carbonate | |
| Bone Powder | Lignocellulosic biomass | Sodium Chloride (NaCl) | |
| Cab-O-Sil | Lithium Bromide | Sodium Dithionite | |
| Calcium Chloride | Lithium Tetraborate | Sodium Hydrogen Phosphate | |
| Carbon Powder / Coal powder | LTP | Sodium Hydroxide | |
| Carboxylmethyl Cellulose Sodium | Magnesium Sulfate (MgSO4 ) | Sodium Molybdate | |
| Celite | Maleic Acid | Sodium Peroxide | |
| CELL-IN | Maltitol | Sodium Sulfate (Na2SO4) | |
| Cereox | Methacrylic Polymer Resin | Sodium Sulphite, Anhydrous (Na2SO3) | |
| Chlorotrityl Chloride (Dry) | Methanol Reagent | Sodium Thiosulphate | |
| Chocolate Powder | Na-acetate (C2H3NaO2) | Somatropin (human growth hormone) | |
| Chondrotin Sulfate | N-Acetyl-L Cystéine | Sorbitol | |
| Citric Acid sample | NEFA Enzyme Color Reagent | Spirdust (X000S8KK8T) | |
| CL-F | Oxalic Acid | Talcum sample from Customer | |
| Colossis Powder | Paraformaldehyde | Vitamins | |
| Copper Sulphate (CuSO4) | Phytagel | Zinc (Zn) | |
| CPG sample from Customer | Potassium Bicarbonate | Zirconia beads | |
| Dental Amalgam powder | Potassium Carbonate (K2CO3) | 2-Mercaptopyrinde-1-oxide Sodium (C3H4NNaOS) | |
