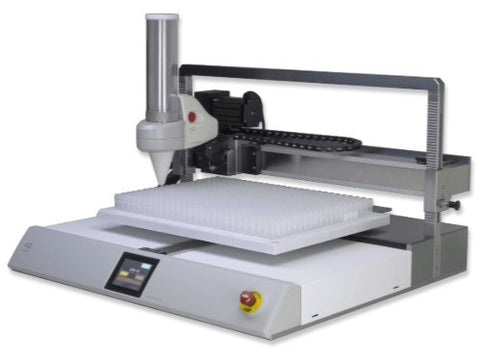

XQ SDB-1RL / SDB-2RL Robotic Benchtop Powder Dispenser Modules

XQ Instruments SDB-1RL / SDB-2RL Robotic Benchtop Powder Dispenser Module

The benchtop SDB-1RL and SDB-2RL are automated versions of the SDB-1 and the larger SDB -2 dispensers for batch processing of microtubes or vials. Compared to the SDB-1R these versions have by similar functionality a much larger XY table with a travel of 300mm x 400mm to process substantial batches of tube or vials.
The SDB-1RL / SDB-2RL can be deployed for automated dispensing into well plates as well as racks of microtubes or vials. The system is controlled from a touch screen controller in the front bezel. Different tube rack formats can be programmed.
This solution increases productivity by enabling “walk-away” time of lab operators and alleviates tedious repetitive tasks and improves productivity and process quality.
One staff can operate a number of these robotic systems in parallel

For calibration of additional heads and disks, Click Here to View!

For additional Powder Dispenser Accessories, Click Here to View!

Sample size requirement for Machine Calibration:

At least 20x of dosage requirements (e.g. 40 grams for a dosage of 2 grams);

Workflow

• The SDB-1RL will include 1 dosing head, 1 200mL reservoir, and 1 power supply.
• The SDB-2RL will include 1 dosing head, 1 5L reservoir, and 1 power supply.
• Integrates SDB-1 / SDB-2 Dispenser with full functionality
• Pause/Start/Pause after action/Restart function
• Vibration mode on and off
• Multiple dose dispensing (up to 99x repeat shots per container)
• Racks/Trays can accommodate 200-600 containers depending on size.
• Custom well-plate configuration:
     – Number of tubes/vials along X-axis and Y-axis
     – Spacing between adjacent tubes/vials along X-axis and Y-axis
     – Index location for first tube/vial
     – Skipped tube positions; irregular dispensing patterns can be realized
     – Ten rack configurations can be saved and name

• Password protected configurations and settings

Specifications
