IKA HBC 5 Temperature Control - MSE Supplies LLC

IKA HBC 5 Temperature Control

SKU: 0004127001

  • £4,24600
  • Save £8700



IKA HBC 5 Temperature Control

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0004127001

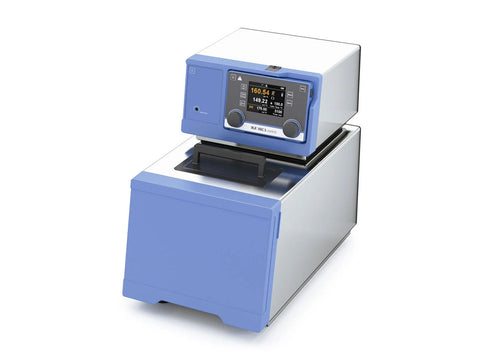

The HBC 5 control heated bath circulator heats up to a max. temperature of 250 °C. It has a high quality stainless steel bath with a volume of 5 – 7 liters. The TFT display is in color and illustrates all relevant parameters. With just one key, the internal temperature regulation can be switched to external temperature regulation. The large surface of the radiator allows for an optimum heat exchange and a gentle heating process of the medium. Push and turn buttons allow for intuitive menu navigation. The menu comes in different languages. The bath has a front drain valve for safe emptying. In order to drain the bath, a hose is connected so there is no direct contact with the tempering fluid. With the unique WiCo Wireless Controller, the unit can be operated from a distance of up to 10 meters/3 ft.

  • Temperature range: 20 – 250 °C
  • Temperature accuracy: ± 0.01 K
  • Wireless Controller (WiCo) enables safe operation, e.g. outside of a closed fume hood
  • Large easy to read TFT display for temperature, pump speed, filling level and safety temperature.
  • Integrated cooling coil
  • Powerful, speed controlled pressure/suction pump
  • Adjustable safety circuit
  • Safety classification III (FL) according to DIN 12876
  • Timer function: 0 – 99 h 59 min
  • Visual and acoustic safety warning
  • Connection of a magnetic valve possible
  • USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as updating the device software through our website

Scope of delivery

  • HBC 5 control
  • Hose olive NW 12 (2 pcs.)
  • CC1
  • Screwdriver (use for safety circuit)
  • OS 1.0 power supply (for WiCo)
  • USB Cable - USB A to Micro-B, 2 m
  • USB 2.0 cable Micro A – Micro B

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA HBC 5 Temperature Control

Appliance type Circulation thermostat
Class designation acc. DIN 12876 III
Identification according to DIN 12876 FL
Heat output 1250 W
Working temperature room temp. +10K @1000rpm - 250 °C
Operating temperature min. (with external cooling) -20 °C
Temperature display yes
Temperature control PT 100
Working temperature sensor PT 100
Safety temperature sensor PT1000
Working temperature display TFT
Safety temperature display TFT
Temperature stability DIN 12876 ±0.01 K
Connection for ext. temperature sensor PT 100
Display resolution 0.01 K
Display for operation with ext. sensor yes
Set temperature resolution ±0.1 K
Warning function optical yes
Warning function acoustic yes
Warning function excess temperature yes
Adjustable safety circuit 0 - 260 °C
Sub-level protection yes
Over-level protection yes
Filling volume 5 - 7 L
Pump type Pressure- / suction pump
Pump capacity adjustable yes
Pump pressure max. (0 liters discharge flow) 0.61 bar
Pressure pump (suction side) (0 liter flow) 0.45 bar
Flow rate max. (0 bar back pressure) 31 L/min
Pump connection M16x1
Cooling coil connection NW 8
Bath depth min. 150 mm
Width bath opening 172 mm
Depth bath opening 82 mm
Calibration option yes
Technical data complies with the standard DIN 12876
Permissible ON time 100 %
Multi-Interface yes
Alarm output (potential-free contact) max. 30 V AC/DC
Alarm output (potential-free contact) max. 1 A
Solenoid valve output 24 VDC
Solenoid valve output max. 0.8 A
Standby input 5 VDC
Dimensions (W x H x D) 275 x 406 x 500 mm
Weight 17.3 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface yes
Voltage 100 - 115 V
Frequency 50/60 Hz
Power input 1400 W
