IKA SP Set-2 Viscometers
SKU: 0025000329
IKA SP Set-2 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025000329

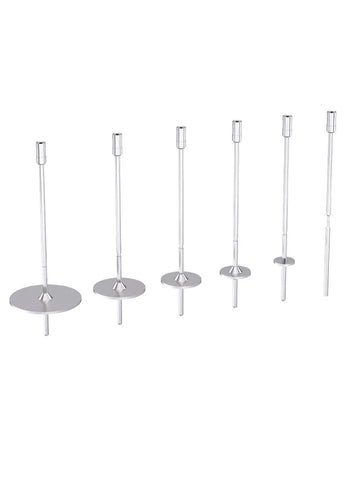

The standard spindle set SP set-2 includes six spindles (SP7, SP8, SP9, SP10, SP 11, SP12). It is particularly suitable for viscosity determination in combination with the rotary viscometers ROTAVISC me-vi, hi-vi I or hi-vi II Complete or rather ROTAVISC me-vi, hi-vi I or hi-vi II Advanced.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA SP Set-2 Viscometers
| Spindle geometry | Disc |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Spindle length | 135 mm |
| Sample volume | 500 ml |
| Sample container: | 600mL beaker low |
| Working temperature max. | 300 °C |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 15 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 3750000 mPa.s |
| Min. FSR match ROTAVISC me-vi | 100 mPa.s |
| Max. FSR match ROTAVISC me-vi | 40000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 200 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 80000000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 800 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 320000000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 160 x 82 x 270 mm |
| Weight | 0.469 kg |
| Permissible ambient temperature | 5 - 40 °C |
