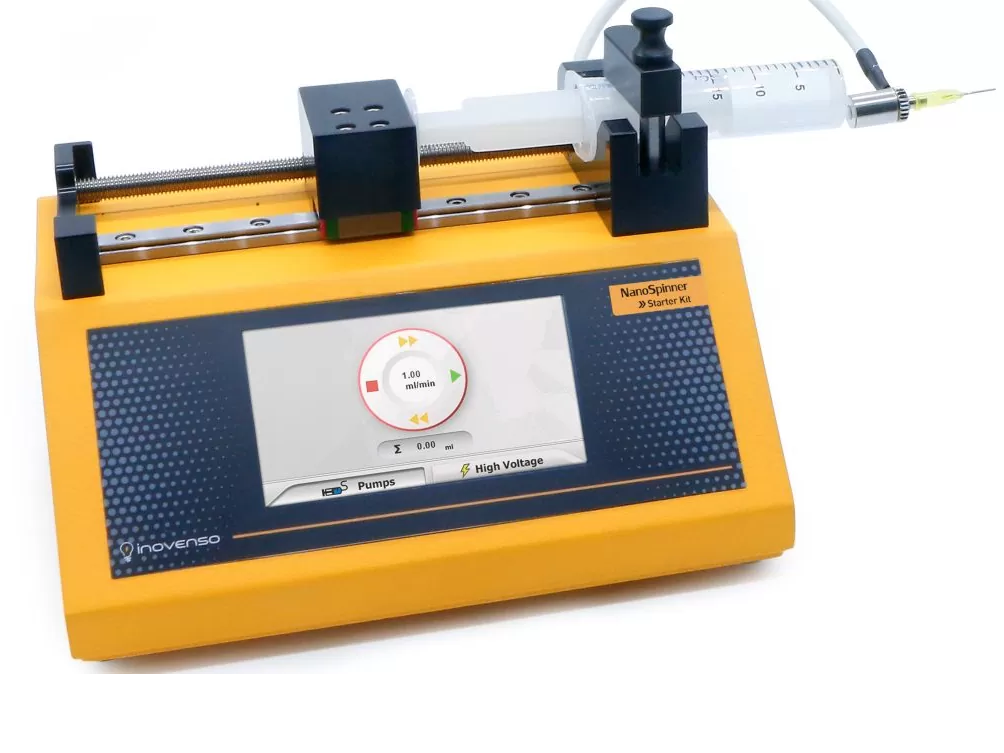

Inovenso Entry Level Electrospinning/Spraying Machine - Starter Kit

Inovenso Entry Level Electrospinning/Spraying Machine - Starter Kit

SKU: MA1401

  • £5,40800
  • Save £60000

Inovenso Entry Level Electrospinning/Spraying Machine - Starter Kit

Buy Inovenso Electrospinning/Spraying Equipment from MSE Supplies at the best value.

Brief Description

The Starter Kit electrospinning system is an ideal solution for researchers seeking a cost-effective and efficient method for small-scale nanofiber production. This innovative system boasts a single-nozzle configuration housed within a compact and user-friendly unit, making it perfect for laboratory settings.

Designed for versatility and ease of use, the Starter Kit electrospinning system enables side-by-side spinning, allowing researchers to experiment with different parameters and achieve the desired nanofiber properties with minimal hassle. Whether you’re a novice in the field or an experienced scientist, this system provides the reliability and flexibility needed to advance your nanofiber research.

The NS Starter Kit is a cost-effective electrospinning system tailored for small-scale nanofiber research. Designed with a single-nozzle configuration, this compact unit offers precise control over key parameters, making it an ideal choice for entry-level projects.

  • Ease of Use: The intuitive interface simplifies operation, making it accessible even for those with minimal technical knowledge.
  • Precision: Fine-tuning settings for spinning distance, flow rate, and applied voltage allows for accurate control over process parameters, enhancing the quality and consistency of results.
  • Efficiency: Quick adjustments and real-time feedback streamline workflows, reducing downtime and increasing productivity.
  • High precision 0-30 kV high voltage power supply
  • 4.3” Resistive Touch TFT LCD screen
  • Microcontroller software
  • User friendly interface
  • Adjustable flow rate even during process
  • Automatic current display
  • Flat Collector

Technical Specifications:

Description Entry Level Single Nozzle Electrospinning Unit
Spinning-Type Side By Side Spinning
Construction
Chassis No Closed Chassis For Spinning Area
Collector Material 7000 Series Aluminum Alloy, Stainless Steel
Total Weight Approx. 2.9 kgs
Dimensions W: 220 mm, L: 170 mm, H: 137 mm
High Voltage Power Supply
Voltage Range 0 - 30 kV
Voltage Precision 0.1 kV
Max. Current 0.170 mA
High Precision Micro Pump
Syringe Type Glass, plastic
Min Flow Rate 10 nl/min (Hamilton 0.5 μl)
Max Flow Rate 120 ml/min (140 ml Monoject Syringe)
Linear Force 20 kg
Feeding Area
Number of Nozzles 1
Nozzle Material Electrically Conductive Stainless Steel
Nozzle Inner Diameter 0.8 mm
Compatible with Standard Syringe Nozzles Yes
Directly Feed Into Nozzle Yes
Spinning Distance
Distance Between Nozzle and Collector 0 mm - ∞
Distance Adjustment Manual Control
Stationary Plate Collector
Collector Type Flat as standard; drum collector also optionally available.
Unique User Interface
Touch Screen Control Panel 4.3" touch screen with a user-friendly interface
Parameter Control Fully able to control all parameters
Environmental Specifications
Operating Temperature Between -10°C and 50°C
Storage Temperature Between -30°C and 85°C
Operating Humidity RH 10% - RH 90% (not condensed)
Storage Humidity RH 10% - RH 90% (not condensed)
