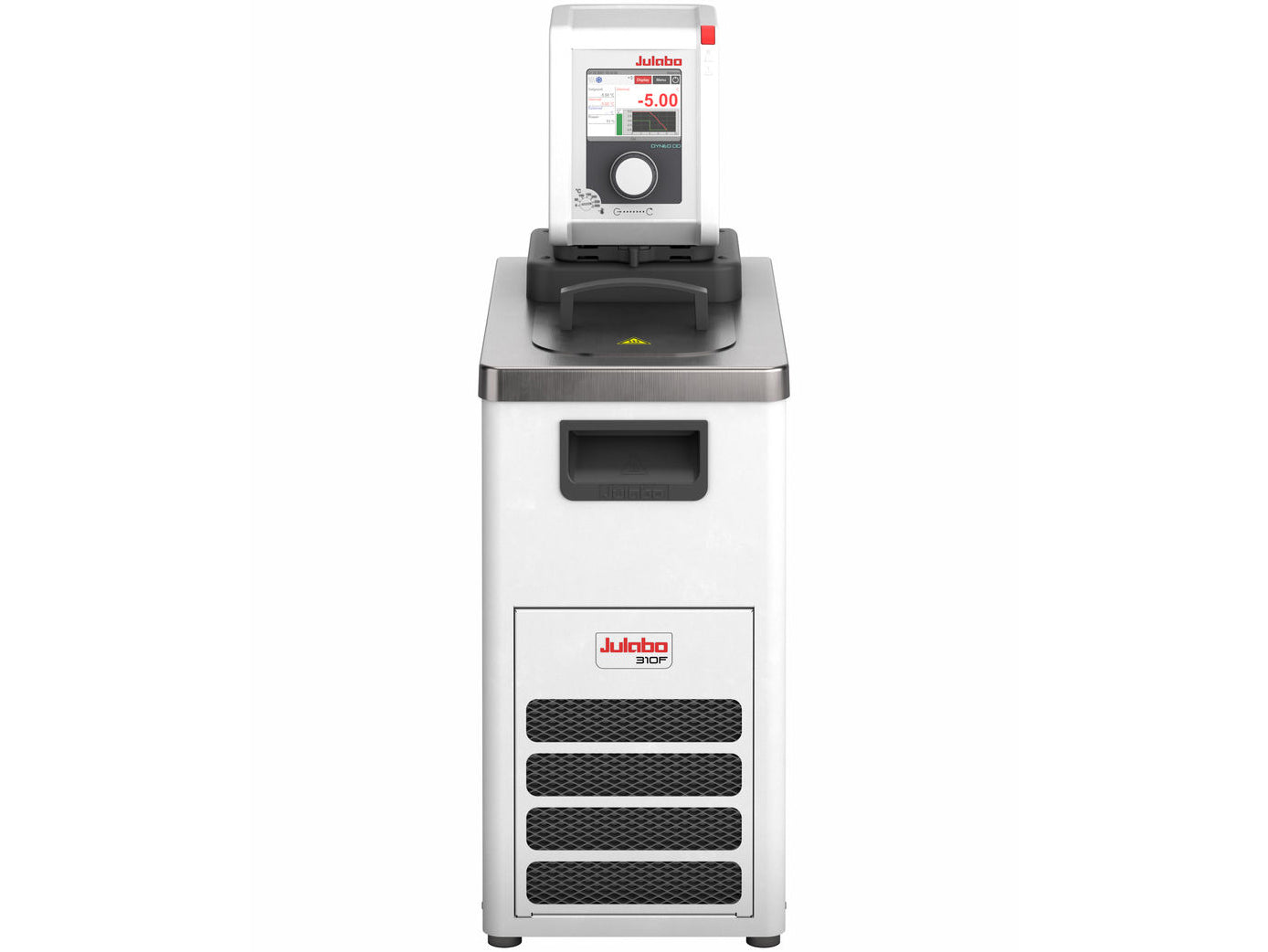

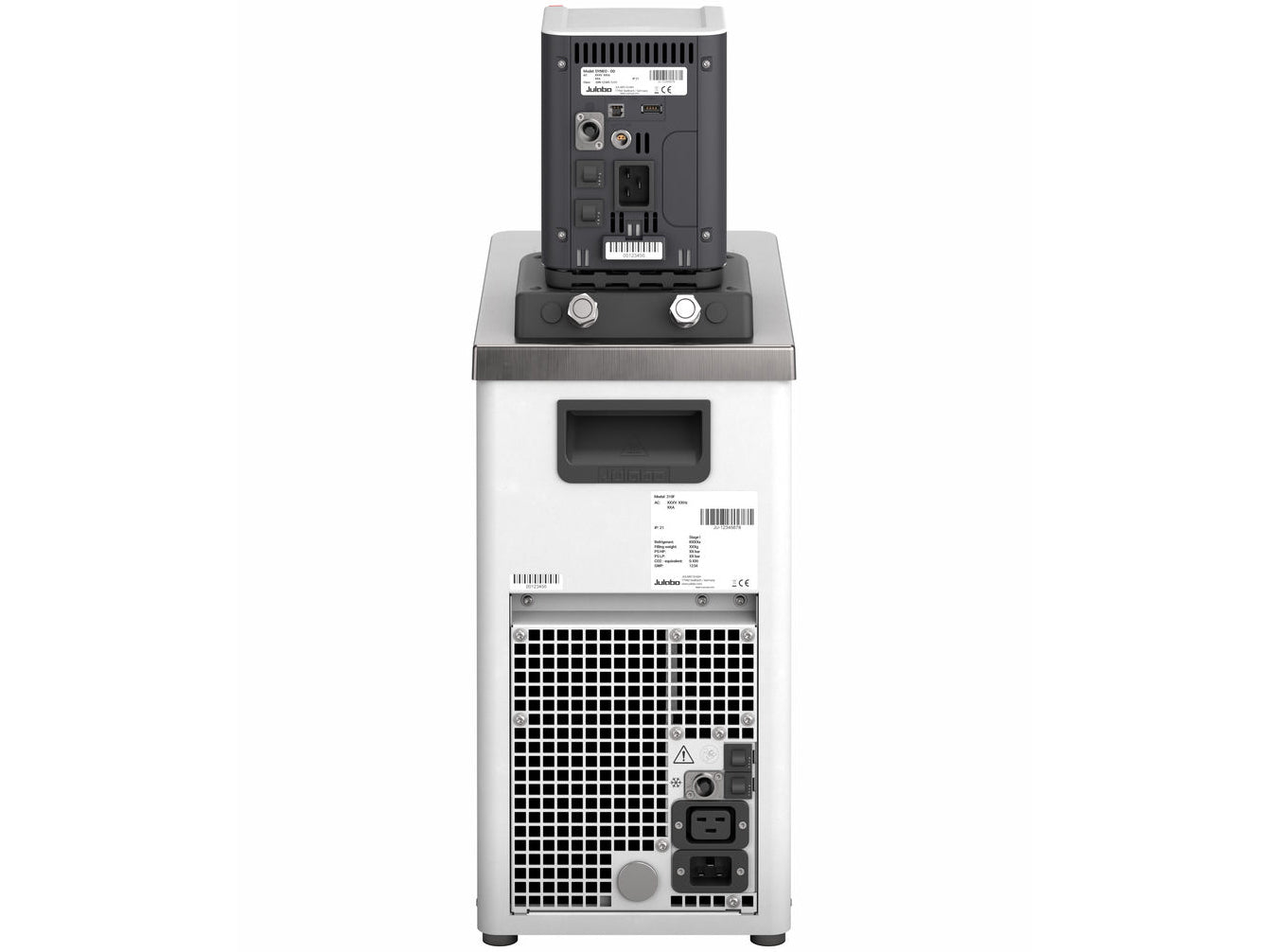

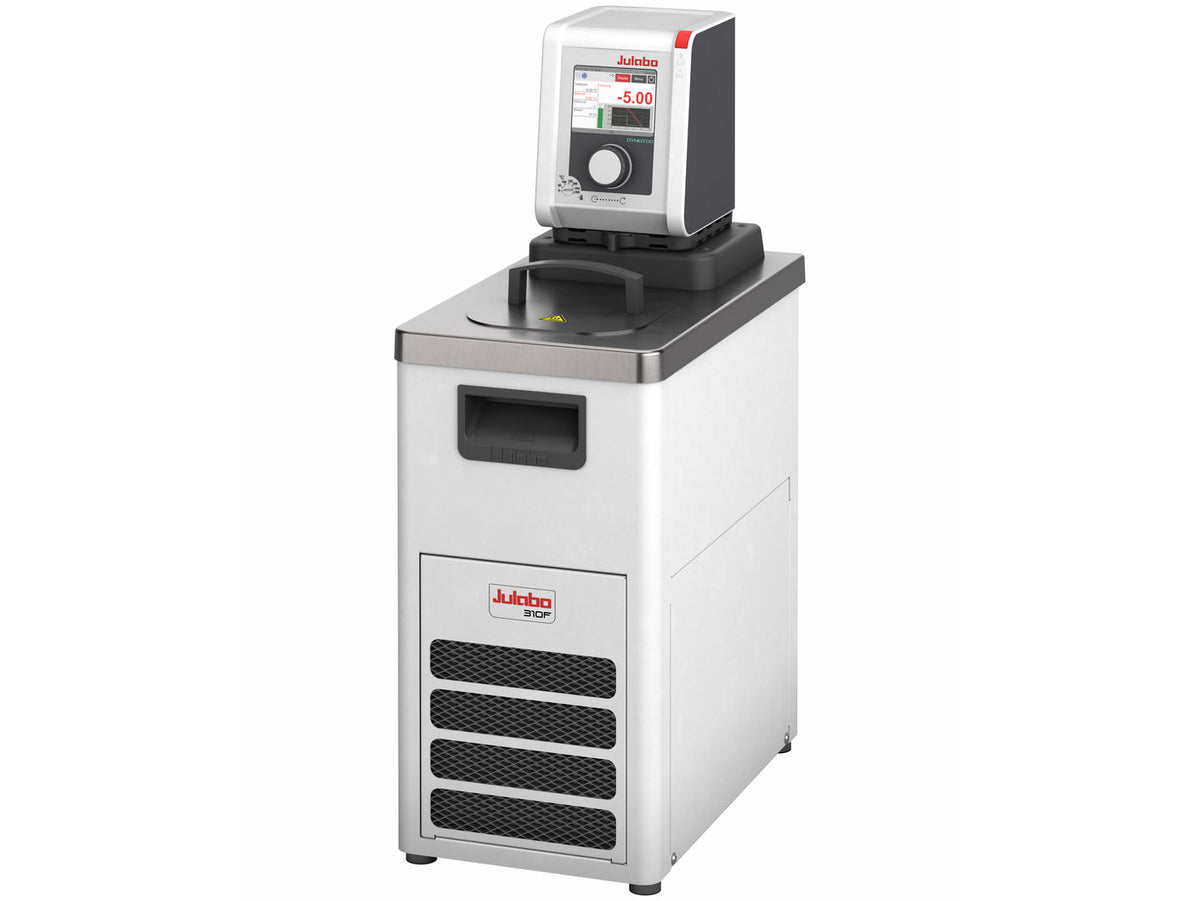

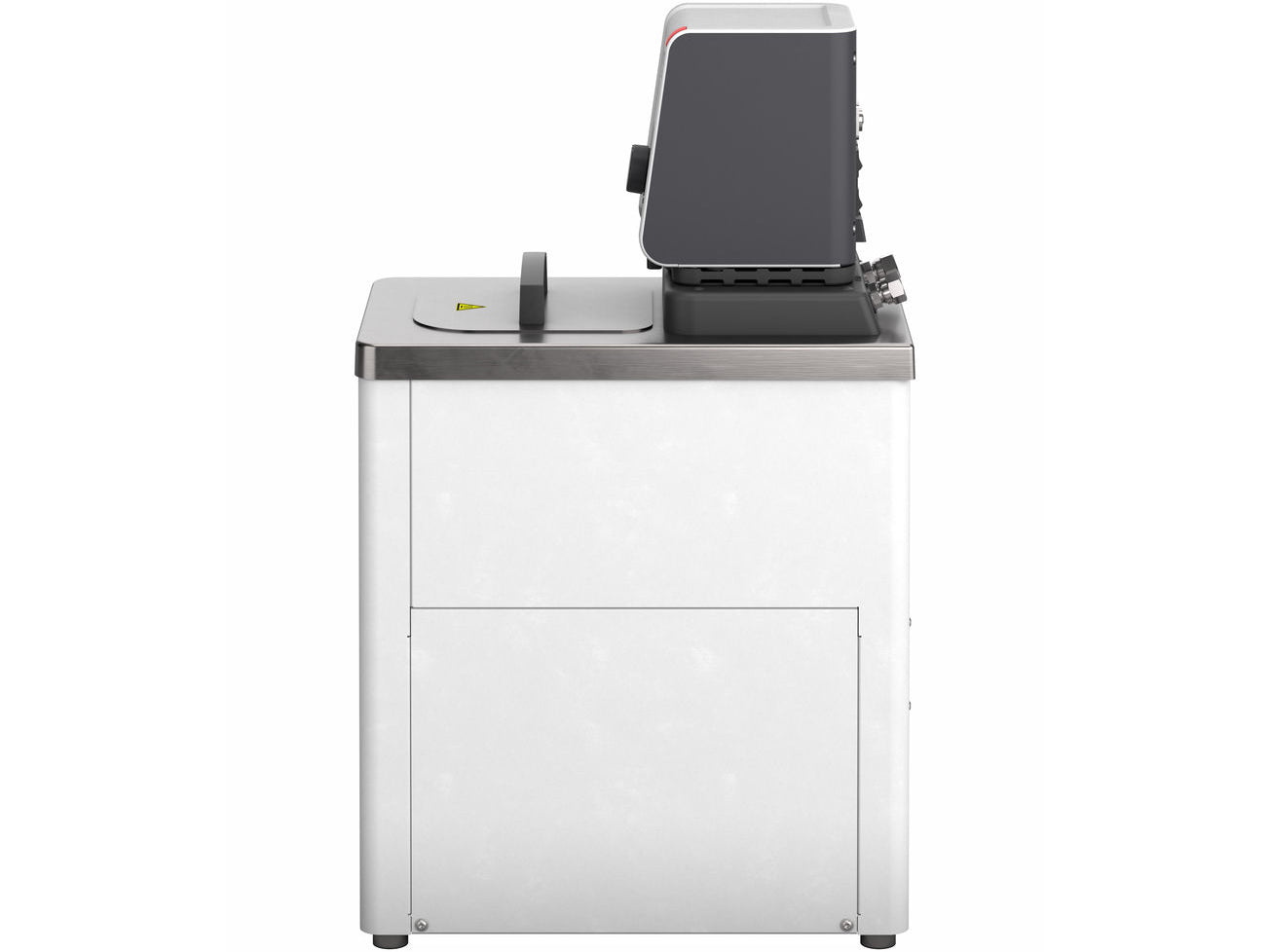

Julabo DYNEO DD-310F Refrigerated/Heating Circulators

DYNEO™ DD-310F refrigerated/heating circulator with an operating range of -30…+200 °C and ±0.01 °C stability. Suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. A color TFT display with central rotary knob controller includes a multi-lingual interface, integrated programmer, Pt100 port for external temperature control, USB-B connection for external PC control and USB-A for data-logging. Additional communication options include an RS232 port or an analog module interface, for voltage or current control. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Stainless steel bath tank (3-4L) with integrated drain port. Unit fittings: M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. 0.3kW cooling power at 20 °C with 20W at -30 °C. Options for heating power (1kW or 2kW) and refrigerant (R290 natural refrigerant or R449A synthetic refrigerant).
Class III (FL) according to DIN 12876-1.
