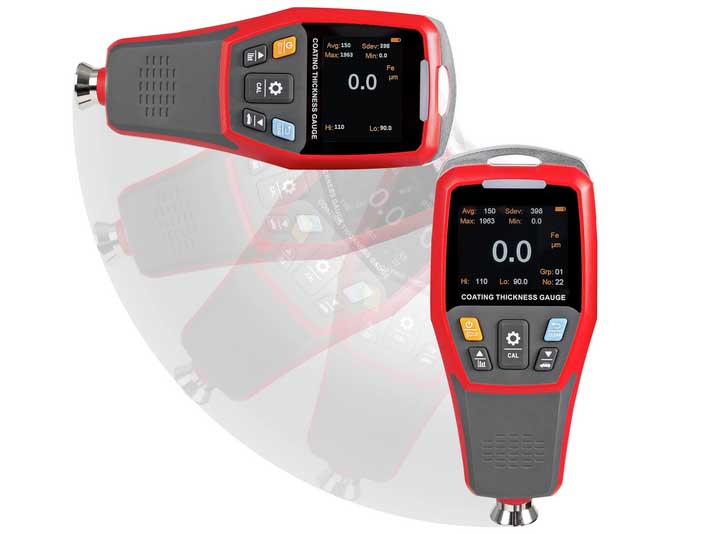

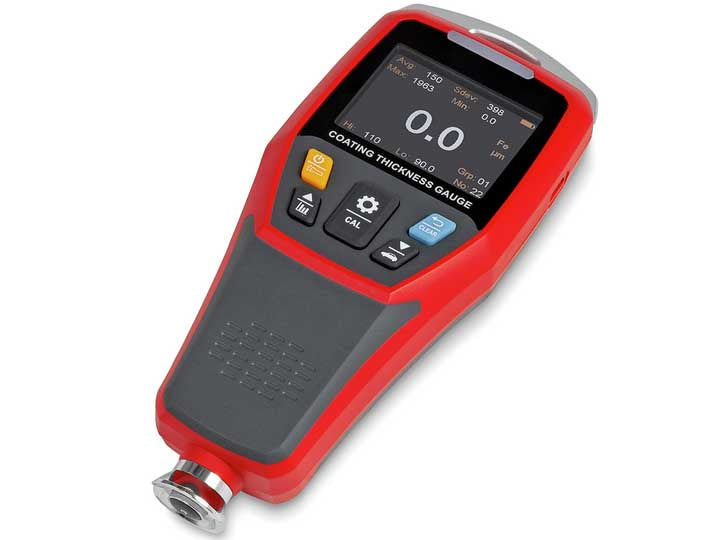

Kern Coating Thickness Gauge - FE/NFE Intern JCT 100
SKU: JCT 100
Kern Coating Thickness Gauge - FE/NFE Intern JCT 100
MSE Supplies offers a Coating Thickness Gauge - FE/NFE Intern from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
New-generation measuring coating thickness gauge.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Accurately determines the thickness of coats of paint or varnish on iron or non-iron base material
- Combination of magnetic and eddy current measuring methods enables particularly high levels of precision and flexibility. The base material is detected automatically
- Stable, reliable performance as well as non-destructive measuring
- Measuring range up to 2000 µm
- Low-wear sensor thanks to state-of-the-art technologies
- Single and two-point calibration
- Single and repeated measurements for pass/fail assessment. The three-colour LED display shows the current value attribute (green: qualified, red: below the limit value, yellow: above the limit value)
- The display rotates automatically and makes it easier for the user to read the measured values from many different angles, or alternatively it can be locked in place manually
- Selection of functions with automotive mode, voice transmission, Bluetooth App and LED torch
- Bluetooth App included for communication and applications
- Main application areas: Coating thickness measurement on metals in industry and research, for example in the automobile industry, metal processing, painting and inspection
- Delivery in a practical box.
Product Parameters
| Measuring range coating thickness [d] (µm) | 2000 µm |
| Readability coating thickness [d] (µm) | 0,1 µm |
| Tolerance (% of [Max]) | 2% |
| Units | µm, inch (mil) |
| Coating thickness gauge sensor type | FE, NFE |
| Test object thickness coating | Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N |
| Memory function | ü |
| Statistic function | ü |
| Continuous capture possible | ü |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 152×65×35 mm |
| Interfaces | Bluetooth, USB 2.0 |
| Sensor placement position | internal |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
