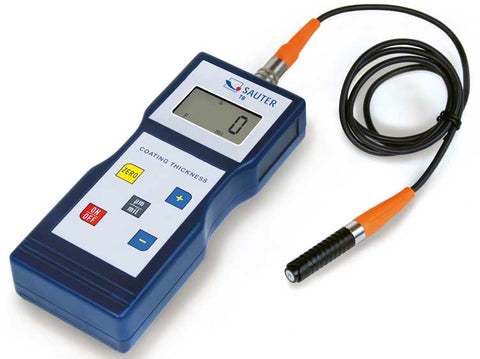

Kern Coating Thickness Gauge - FE/NFE Intern TB 1000-0.1FN
SKU: TB 1000-0.1FN
Kern Coating Thickness Gauge - FE/NFE Intern TB 1000-0.1FN
MSE Supplies offers a Coating Thickness Gauge - FE/NFE Intern from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Practical measuring device for measuring the thickness of layers for daily use.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- External sensor for difficult-to-access measuring points
- Base plate and calibration foils included

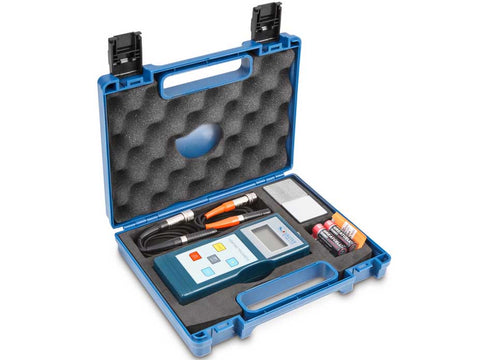

- Delivered in a robust carrying case
- Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value
- Selectable measuring units: µm inch (mil)
- Auto-Power-Off.
Product Parameters
| Measuring range coating thickness [d] (µm) | 100 µm; 1000 µm |
| Readability coating thickness [d] (µm) | 0,1 µm; 1 µm |
| Tolerance (% of [Max]) | 3% |
| Units | µm, inch (mil) |
| Coating thickness gauge sensor type | FE, NFE |
| Test object thickness coating | Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N |
| Battery | 4×1.5 V AA |
| Increase in measurement accuracy possible | ü |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 161×69×32 mm |
| Cable length | 1 m |
| Sensor placement position | external |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
