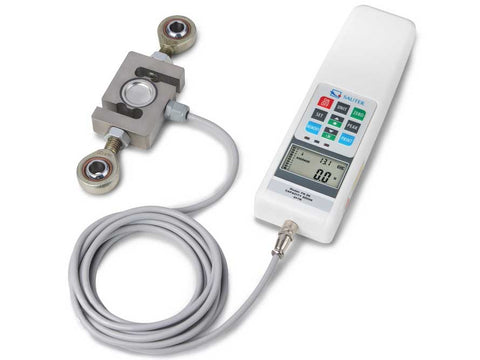

Kern Digital Force Gauge (External) FH 20KUK
SKU: FH 20KUK
Kern Digital Force Gauge (External) FH 20KUK
MSE Supplies offers a Digital Force Gauge (External) from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Universal digital force gauge for tensile and compressive force measurements with external load cell, including UK adapter.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- Turnable display with backlight
- Data interface RS-232 as standard
- Delivered in a robust carrying case
- Selectable measuring units: N, kN, kgf, tf
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal
- Auto-Power-Off
- Internal memory for up to 10 measurement values.
Product Parameters
| Measuring range force [Max] (N) | 20 kN |
| Readability force [d] (N) | 10 N |
| Tolerance (% of [Max]) | 0,5% |
| Measuring head measuring frequency | 2 kHz |
| Number of platforms / channels | 1 |
| Supplied power supply | Accu & Power supply |
| Rechargeable battery | 8,4V / 1200mAh Ni-Hi |
| Memory function | ü |
| Statistic function | ü |
| Limit-setting function | ü |
| Peak function | ü |
| Dimensions completely mounted (W×D×H) | 230×66×36 mm |
| Interfaces | RS-232 standard |
| Cable length | 3 m |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
