Kern Load/Force Measuring Cell CO 1000-Y2
SKU: CO 1000-Y2
Kern Load/Force Measuring Cell CO 1000-Y2
MSE Supplies offers a Load/Force Measuring Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.

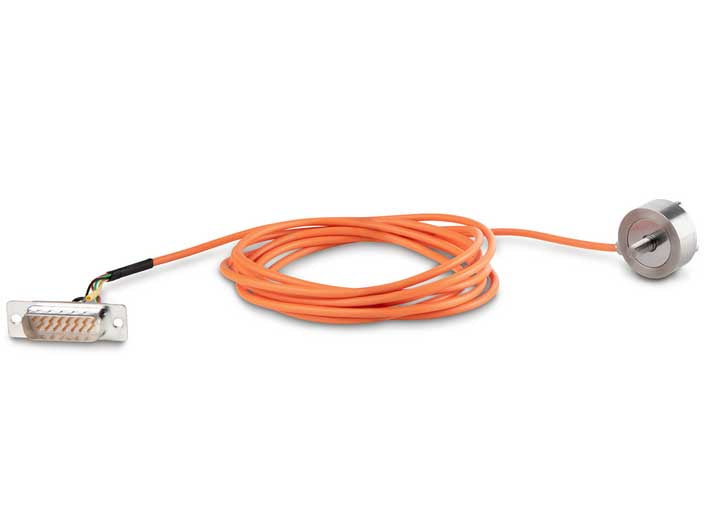

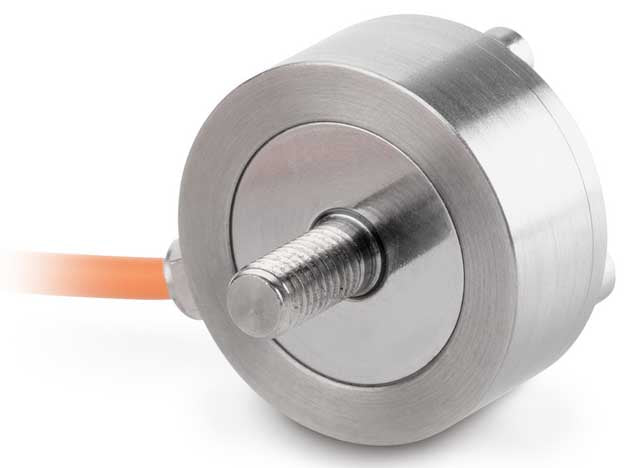

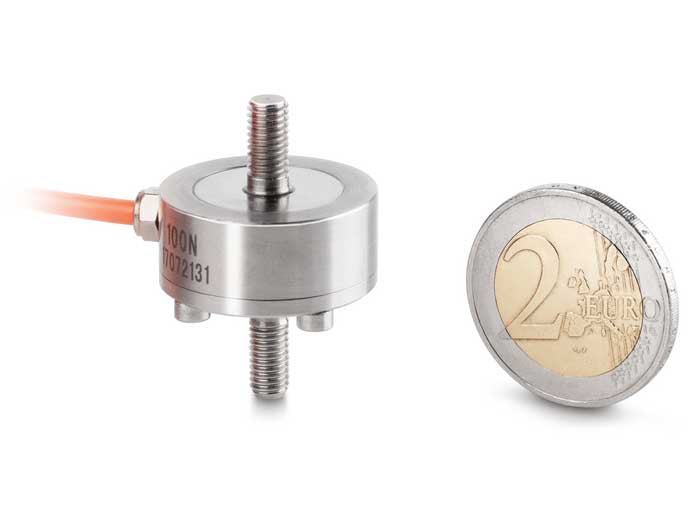

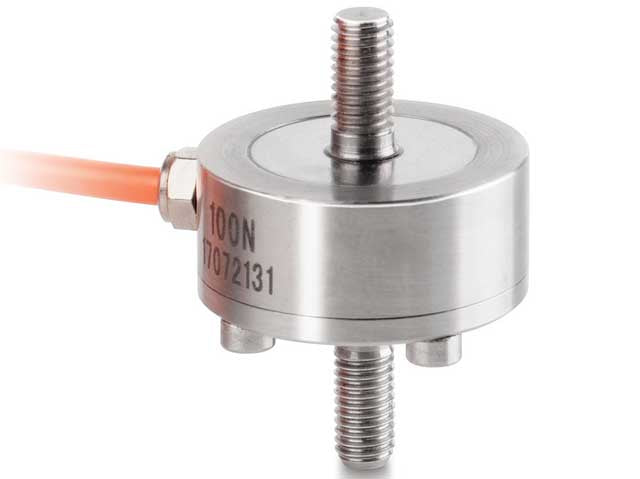

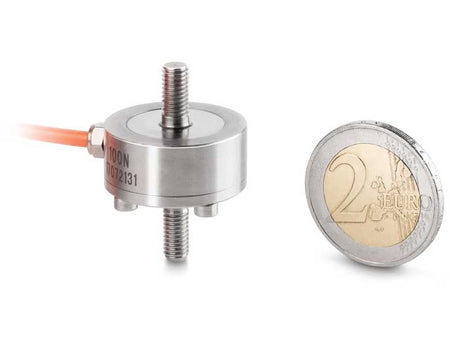

Miniature cylindrical load cell made from stainless steel.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- High precision (comprehensive Error 0,5% F.S.)
- RoHS compliant
- Area of application: Tensile and compressive applications, mass and force measurement
- Suitable for weight measurement as well as force and force test stands.
Product Parameters
| Weighing capacity [Max] | 1000 kg |
| Measuring range force [Max] (N) | 10 kN |
| Design | Tension-/compression rod |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,5% |
| Load cell OIML class | G5 |
| Load cell - characteristic value - nominal | 1,5 mV/V |
| IP protection - complete device | IP65 |
| Material | stainless steel |
| Load cell connection | 4-wire |
| Cable length | 2 m |
| Mounting - force application | External thread M12 |
| Mounting - force dissipation | External thread M12 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
