Kern Load/Force Measuring Cell CR 1000-1Y1
SKU: CR 1000-1Y1

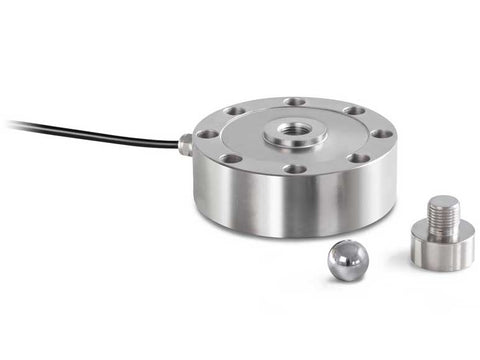

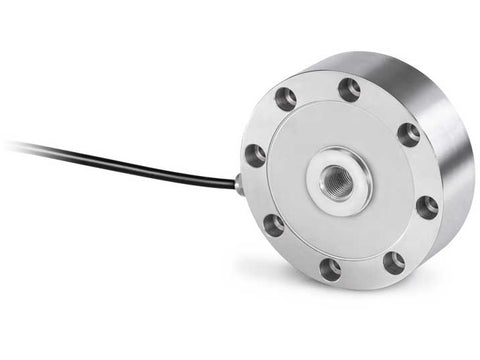

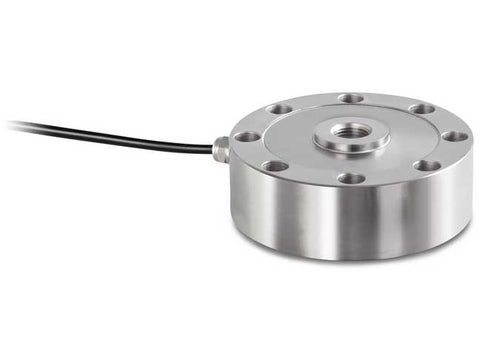

Kern Load/Force Measuring Cell CR 1000-1Y1
MSE Supplies offers a Load/Force Measuring Cell from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Loadcell made of steel alloy.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- High precision (comprehensive Error 0,05% F.S.)
- RoHS compliant
- Area of application: for weight, tensile and compressive force measurement
- Suitable for weight measurement as well as force and force test stands
- Force transmission via pressure piece or threaded hole
- Pressure piece included with delivery.
Product Parameters
| Weighing capacity [Max] | 1000 kg |
| Measuring range force [Max] (N) | 10 kN |
| Design | Load cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Load cell - Combined error | 0,05% |
| Load cell OIML class | C1 |
| Load cell - characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP68 |
| Material | steel |
| Load cell connection | 4-wire |
| Cable length | 3 m |
| Mounting - force application | Pressure piece, Threaded hole M16 × 1,5 |
| Mounting - force dissipation | 8 × through hole Ø 6,5 mm |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
